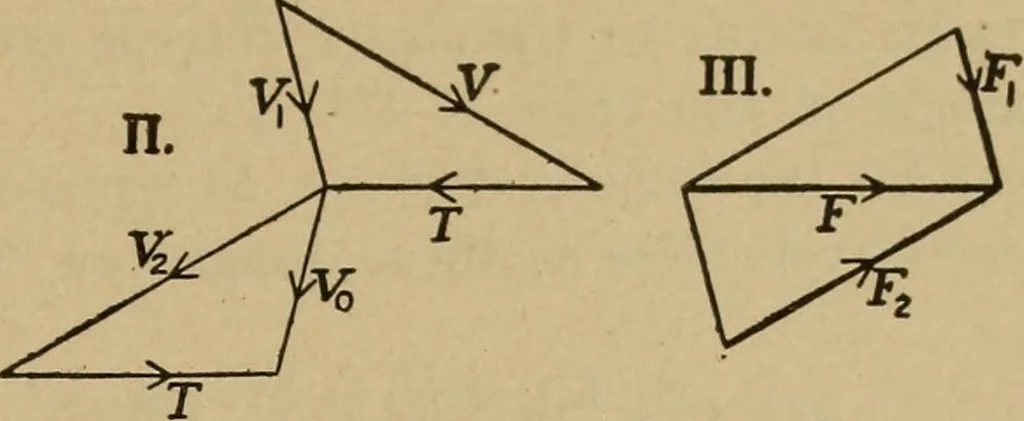

re is a non-effective component Fr, act-ing to cause pressure in the bearings, but which can easily be balanced byadmitting steam to diametrically opposite parts of the wheel. 46 (/)] DYNAMICS OF JET ACTION. 443 The reaction vanes in Fig. 313 differ from the limiting form in i^ig.310 in that they… … Fig. 313. — Diagrams for the Reaction Turbine. projection of V, giving Vi the slant shown. Then the vane profiles aremade to fit the velocity diagram, as in any case. {g) Work on the Vanes. — The effective dynamic driving forceF (called Ft in the preceding discussion) acts upon vanes which havethe…
