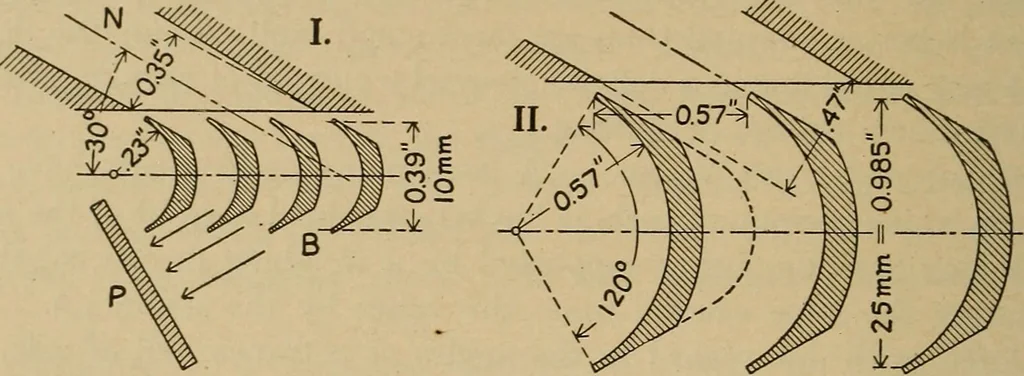

locity coefficient, 476 ACTION OF THE STEAM IN THE TURBINE. [Chap. IX. which in terms of the velocity diagrams in § 46 has the value ey = V2-^Vi (239) The angles and spacing shown in Fig. 338, and found by test to givethe best results, agree well Avith general practice. With these propor-tions, the… … Fig. 338. — Smallest and Largest Blades used in Brilings Experiments — seereference on page 472: intermediate sizes had widths of 15 and 20 mm. needed to give a channel of uniform width; while the actual vanes weremade of brass plate, bent to curve and ground off at the edges. Varyingthe spacing or…
