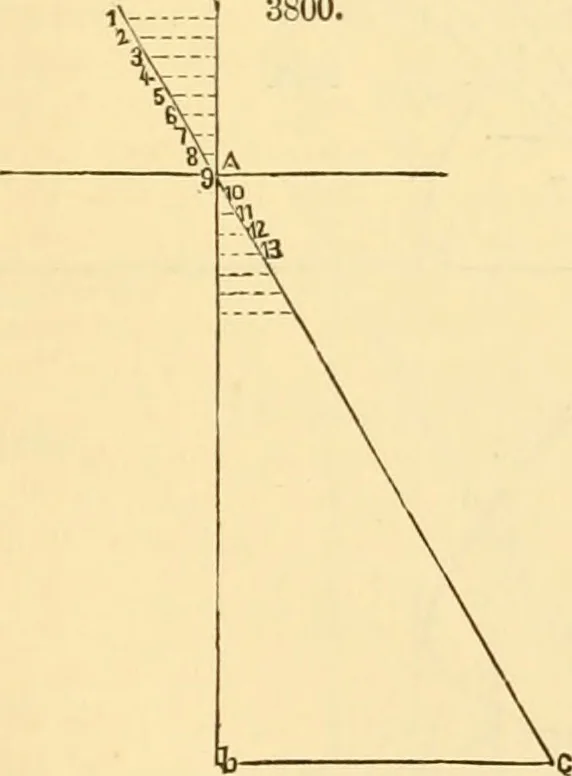

intersecting thepitch-line A C produced in the points 1, 2, 3, etc. The horizontaldistances of these points of A C from A b will be the heightsrespectively above and below the element A of the various ele-ments 1, 2, 3, etc. Through the various points of intersection ofthe radii with G H drop… … line being given, the pattern-maker sets his boards (whichwe assume to have the width ofan aliquot part of the circum-ference) around the circle G H,Fig. 3801. The joints are thenshown by the dotted verticallines in the side view. At eachjoint he subtracts or adds thecorresponding horizontal…
