The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 527

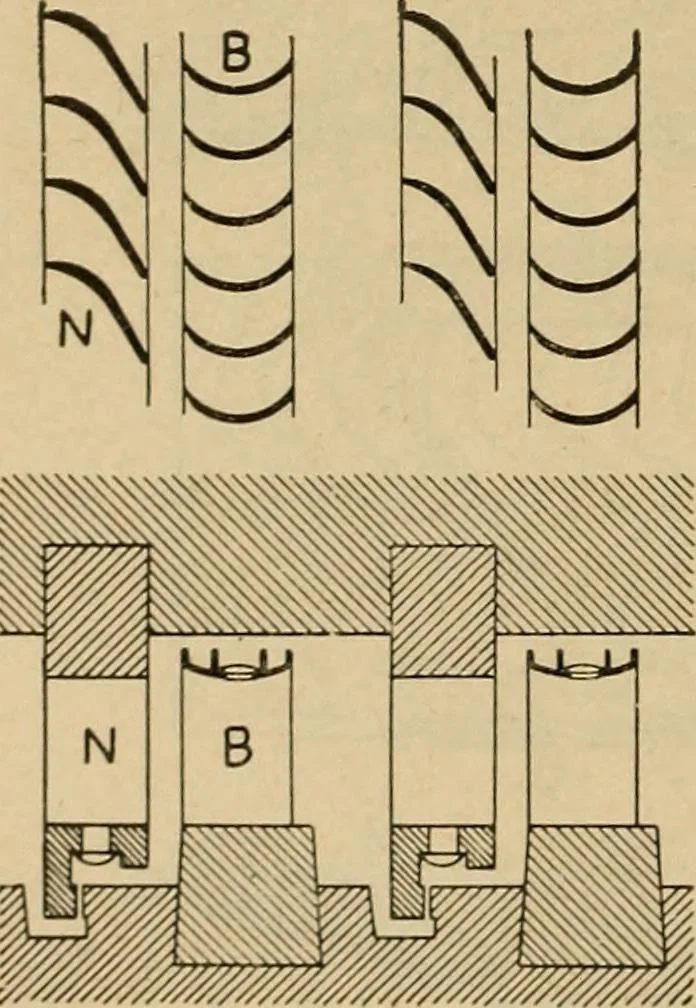

as closeas practicable) with the rotor. The sketch inFig. 355, which gives no detail of the bladefastenings but merely indicates their overallbulk, shows two out of a considerable groupFi«-355. — Impulse Stages, of single-impulse stages at the high-pressurebine!^ enningei ur- ^^^ ^^ ^-^^ Melms… … § 50 (c)] VARIOUS FORMS OF THE TURBINE. 513 A similar group of single-impulse stages on a broad wheel or shortdrum forms the low-pressure end of the Oerlikon-Rateau turbine; andin the marine Curtis turbine — see Art. (g) — the last three or four3-impulse stages are thus mounted on one wheel. With…
Steam-engines · Steam-turbines
