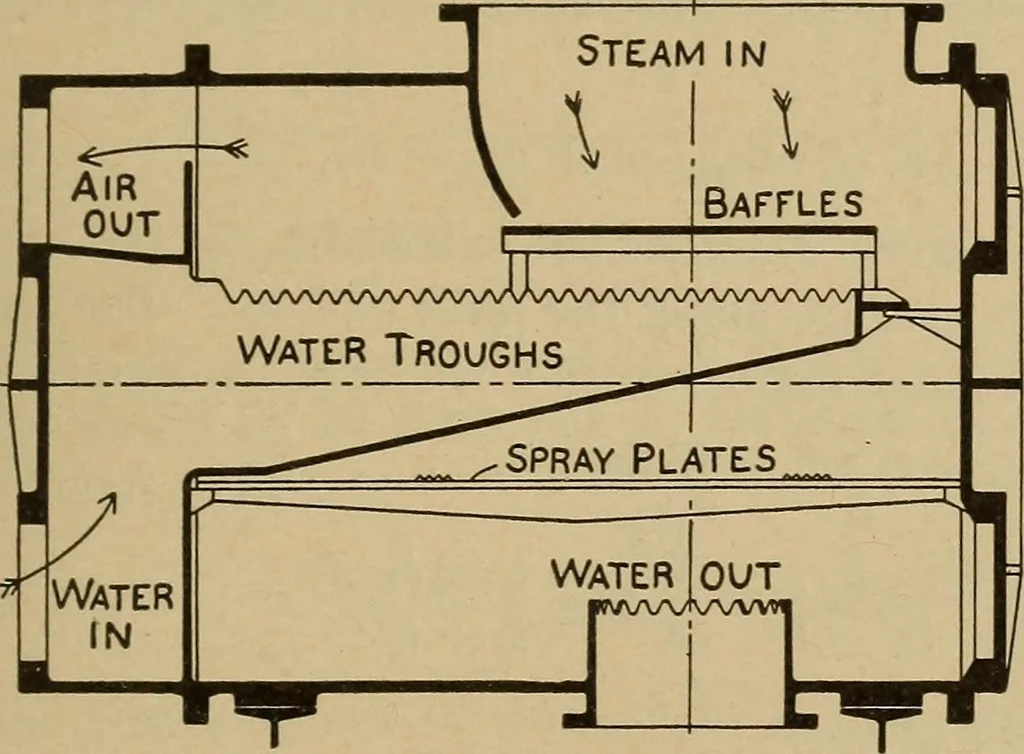

large overflow pipe. In Fig. 394 is seen the working out, with a different form of thecondenser and its parts, of the same ideas of thorough spraying, ofcooling the air from the exhaust steam by unheated spray, and of allow-ing the air in the injection water to escape at once into cool space.This… … \ ^ Fig. 394. — Tomlinson Mixing Condenser, Allis-Chalmers Company. See Power for Mar. 22, 1910. unit. It is served by two centrifugal pumps, on the same shaft, ofwhich the larger draws water from the condenser, the smaller sends astream to the air ejector shown in Fig. 401. Similar progressive…
