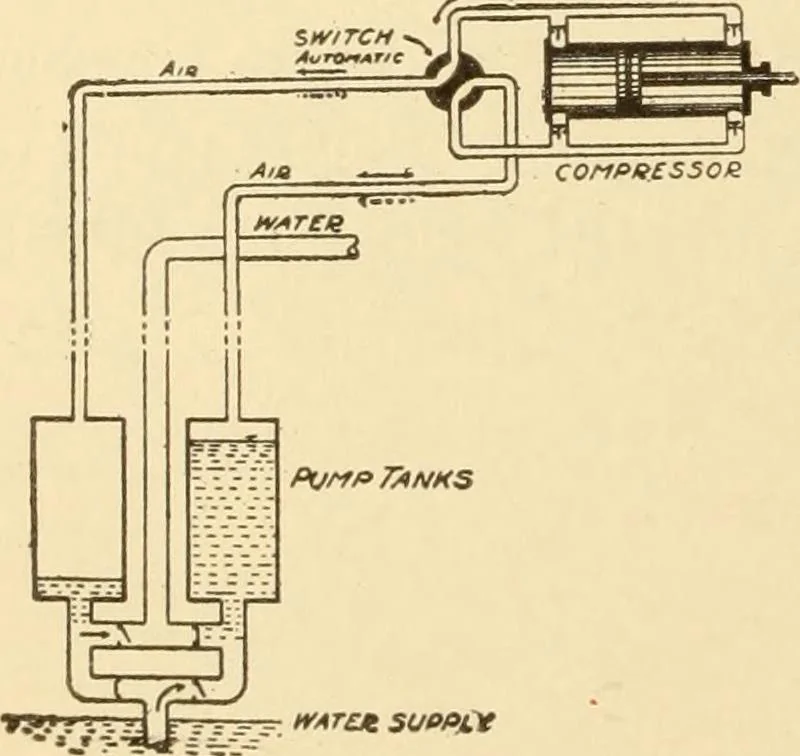

657. CRANK EQUALIZING AN-GLE in air compression. Used toequalize the mean pressure of thesteam and air pistons. The cylindersare set at an angle of 45° . Waringand Rand system. … ir^rex suppiY 658. DIRECT AIR PRESSUREPUMP.—Two chambers for alternatingthe pumping action are placed near thewater surface in a well or other watersupply. The chambers have suction andforce valves. A four-way switch cocknear the air pump alternates the flow ofcompressed air to and from the…
