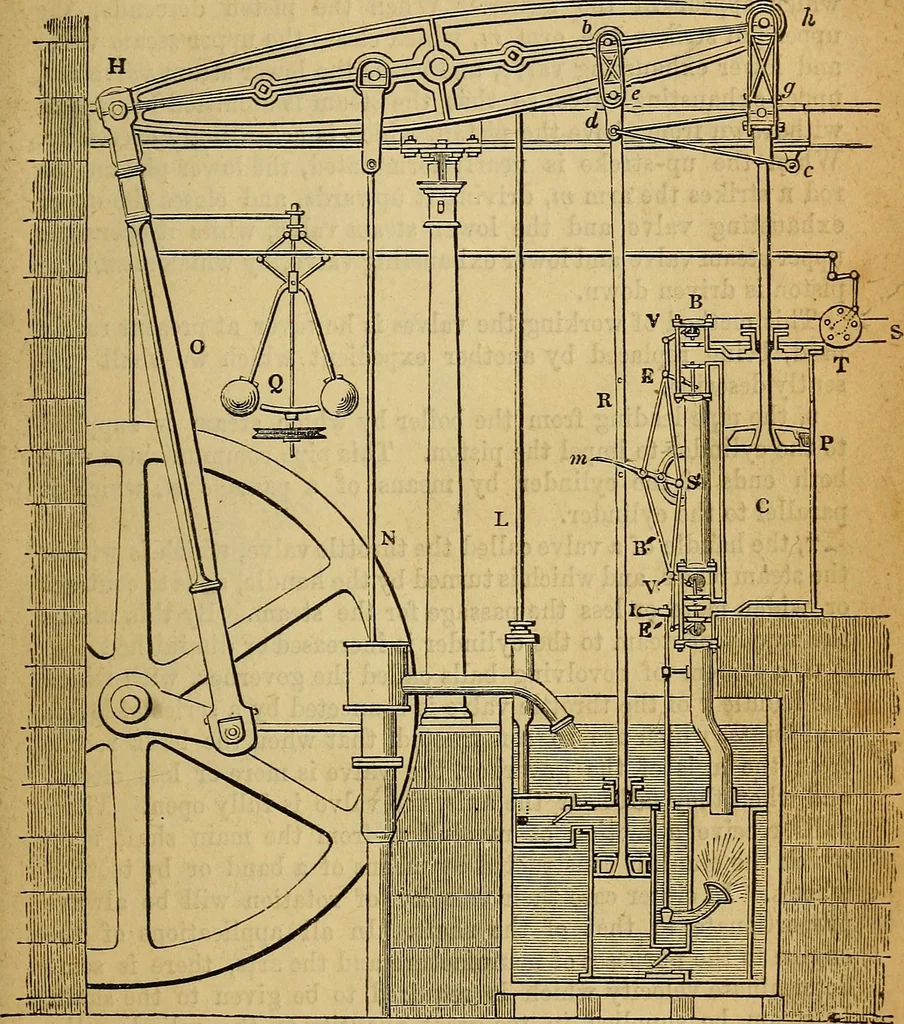

ithdrawing the steam, ateach end of the cylinder. it, the piston-rod of the air pump. l, the piston-rod of the hot-water pump. n, the piston-rod of the cold-water pump. i, the handle of the cock by which the jet in the condenser ismade to play with more or less force. ^5 d>ff> cf a system of… … h, the pin on the end of the beam connected with the end of thepiston-rod by the joint h g. b, the pin on the beam connected with the piston-rod of the airpump by the joint b d. h, the pin on the working end of the beam. o, a rod called the connecting rod, by which the end H of thebeam is connected…
