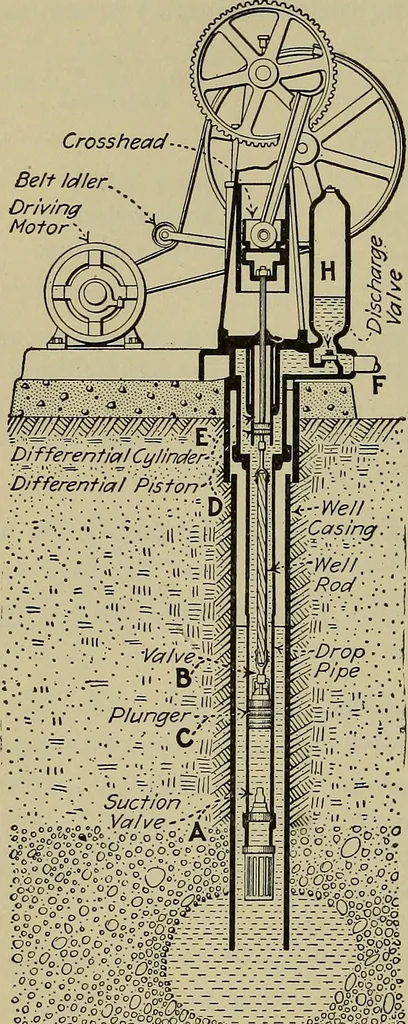

e-acting pumps at the same speed give approximatelytwice these capacities and require twice the power and pulley width. 94 STEAM POWER PLANT AUXILIARIES [Div. 3 Note.—Crank-And-Fly-Wheel Pump Sizes cannot be figured fromthe relative boiler pressure and working pressure as can direct-acting pump… … ..o-o.O.o; Fig. 117A.—Vaile-Kimes Single-Acting Deep-Well Pump Provided WithDifferential Piston For Securing Con-tinuous Discharge. (The plunger, C, onits up stroke discharges half of its dis-placement out the discharge, F, or intothe air-chamber, H. The other half isdrawn into differential…
