Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 123

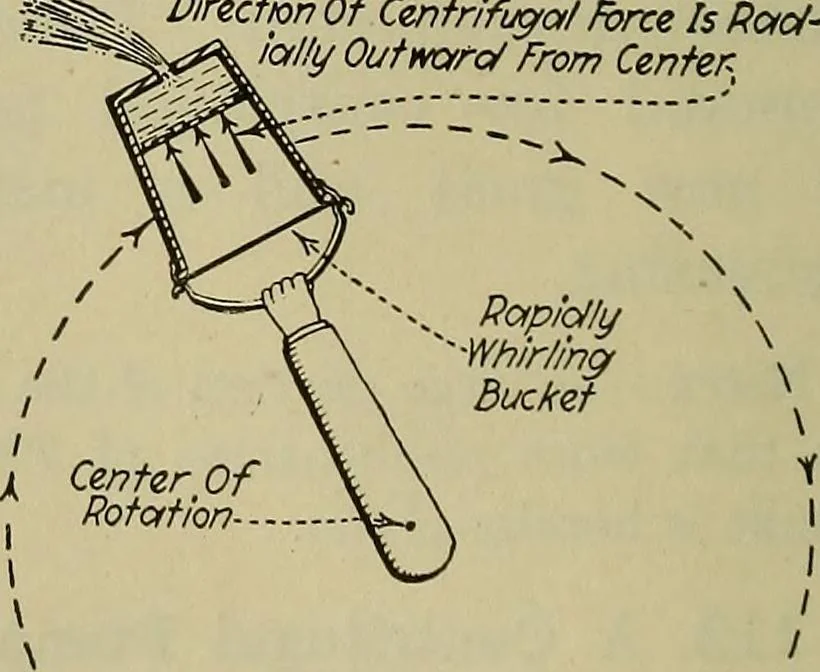

Fig. 123.—Illustrating The Principle OfThe Centrifugal Pump. Direction Of Centrifugal Force Is Rad-ially Outward From Center … \ Circular Path Of / \ Bucket- / ■ -« —* Fig. 124.—Showing That CentrifugalForce Causes The Water To Flow Out-ward Through The Hole In The Bucket. a hole is cut in the bottom of the bucket, the water will beforced out through the hole (Figs. 123 and 124) and will bethrown upward into the air. Sec.…
Steam power plants · Pumping machinery
