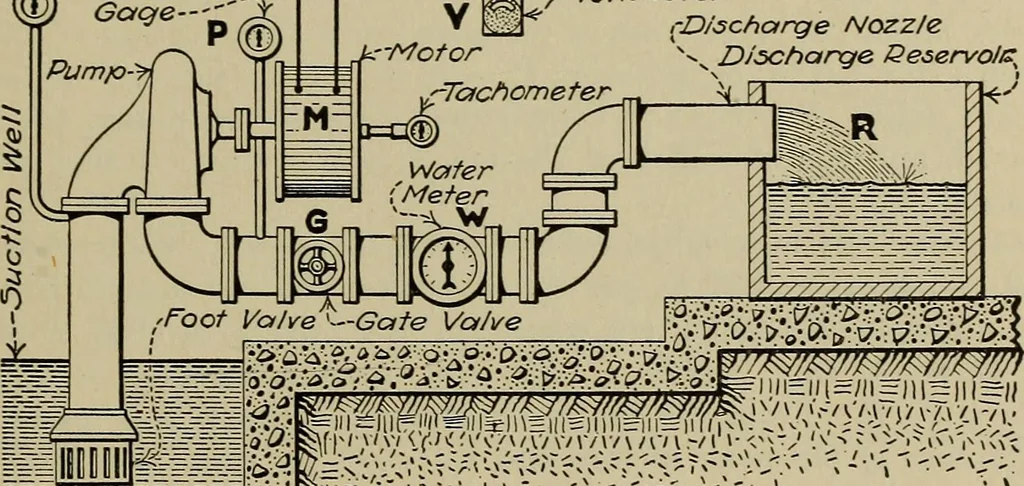

the discharge pipe, or by a water meter, W. Or, if the pump is ofsmall capacity, the water may be discharged into a suitable container, R,and measured directly. The gage readings of S and P should be com-bined and converted to head in feet (Sees. 5 and 38), which will be thetotal head pumped… … „-;==*,•• Sill. /,/. -> ,. -AiV-i;- *«w» J.**£-- v •».■£ ■•^ii.icr:- Fig. 144.—An Arrangement Which May Be Used In Testing A Centrifugal Pump. The pump is primed and started. The speed must be maintainedconstant throughout the test. Simultaneous readings of S, P, A, V, andW are taken. S and P…
