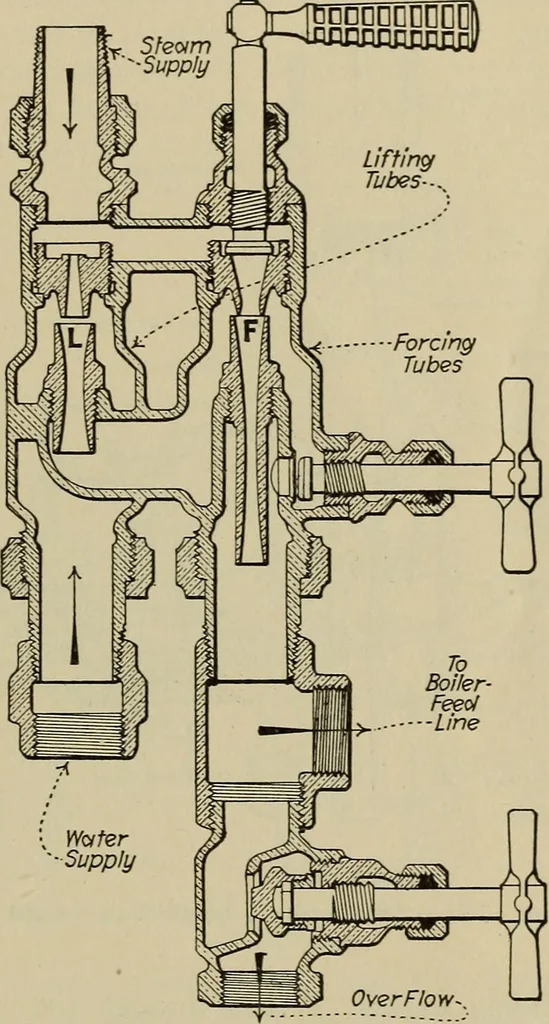

-steam Suction Overflow Outlet Chamber, Steam Hj_nt Steam ,-Nozile ■ V |U--| Valve Inlet-. | \ Overflow-. Sec. 183] INJECTORS 157 and gradually converts most of the kinetic or velocity energy of thejet into static energy or pressure. This is needed to overcome thehead against which the injector is… … but is usually a lift or swingcheck which closes automatic-ally in case that a partialvacuum is formed in the over-flow chamber, O. Thus, V,prevents the inrush of outsideair that would tend to scatterthe jet. The water in the suc-tion chamber, W, is drawn intothe combining tube by the par-tial…
