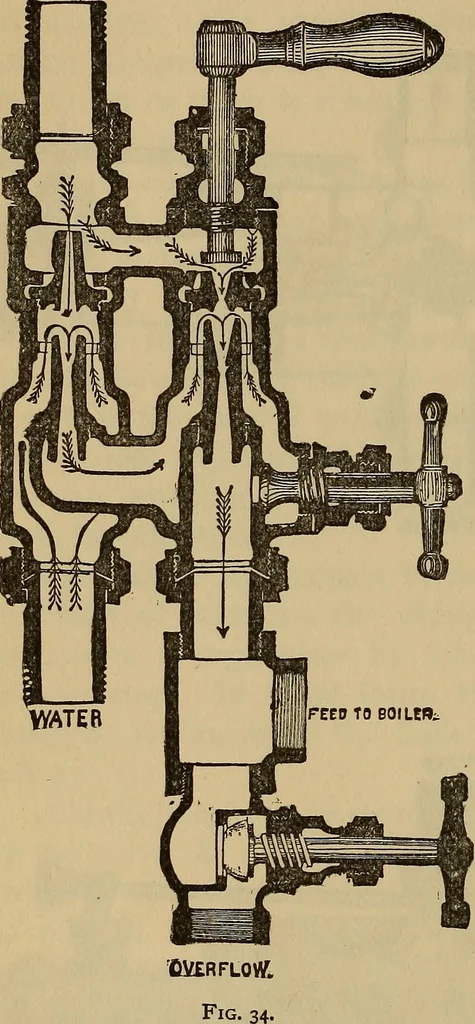

alledthe lifter, draws water fromthe reservoir and forces itinto a chamber, from whichthe second part, called theforcer, takes it and forces itto the boiler. The doubleinjector also has the advantage that it is to a large extent self-regulating, since a rise of boiler-pressure which increases… … INJECTORS. 157 All double injectors are fixed-nozzle injectors and are liftinginjectors. Fig. 34 shows the Hancock inspirator in section. The steamenters at B and flows to the lifter-jet directly beneath, and alsosupplies the forcer-jet at C, where there is a valve for control-ling the flow. The…
