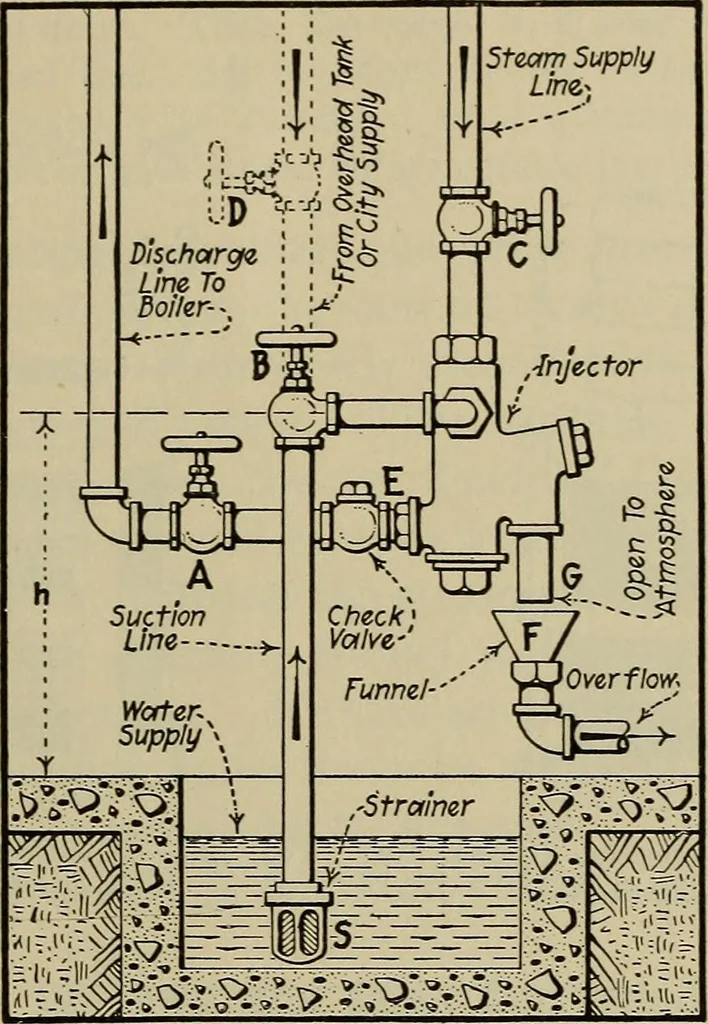

arge pipesare all of the same size except that, in the case of a suction liftexceeding 10 ft. or of a long length of suction line, a pipe oneor two sizes larger should be used therefor. Explanation.—In Fig. 187, the steam line should be tapped into thehighest part of the boiler and lagged all the… … P§s> ri//j to Prevent Splashing Fig. 187.—Piping Of An Injector. throughout its entire length. A check-valve, E, must be installed as shown. A is a globe stop valve which can be used to cut off the boiler pressure from the check-valve so it may be opened for repair. The overflow is usually piped…
