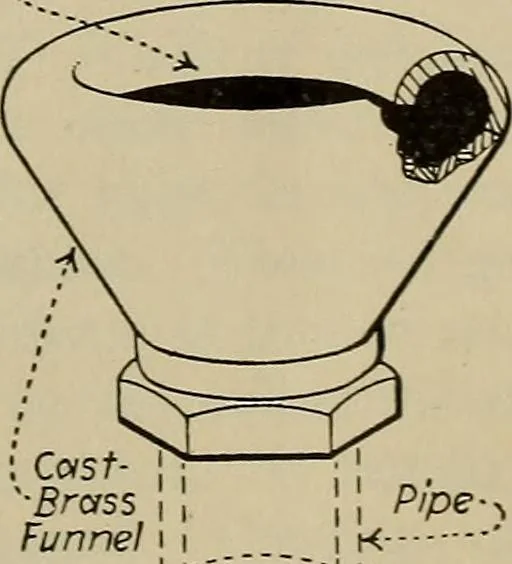

188) on the market. The suction line must be absolutely air tight andas free from elbows and bends as possible. Theglobe angle valve B takes the place of one elbow.The strainer, S, should not have any opening init as large as the steam nozzle in the injector andshould have a combined area of… … FigSplash 18 8.— Non-Funnel For In- jector Overflow Pipe. 168 STEAM POWER PLANT AUXILIARIES [Div. 5 the market that will lift 25 feet. But high lifts reduce the capacity of aninjector as well as its ability to handle hot water. Further they make
