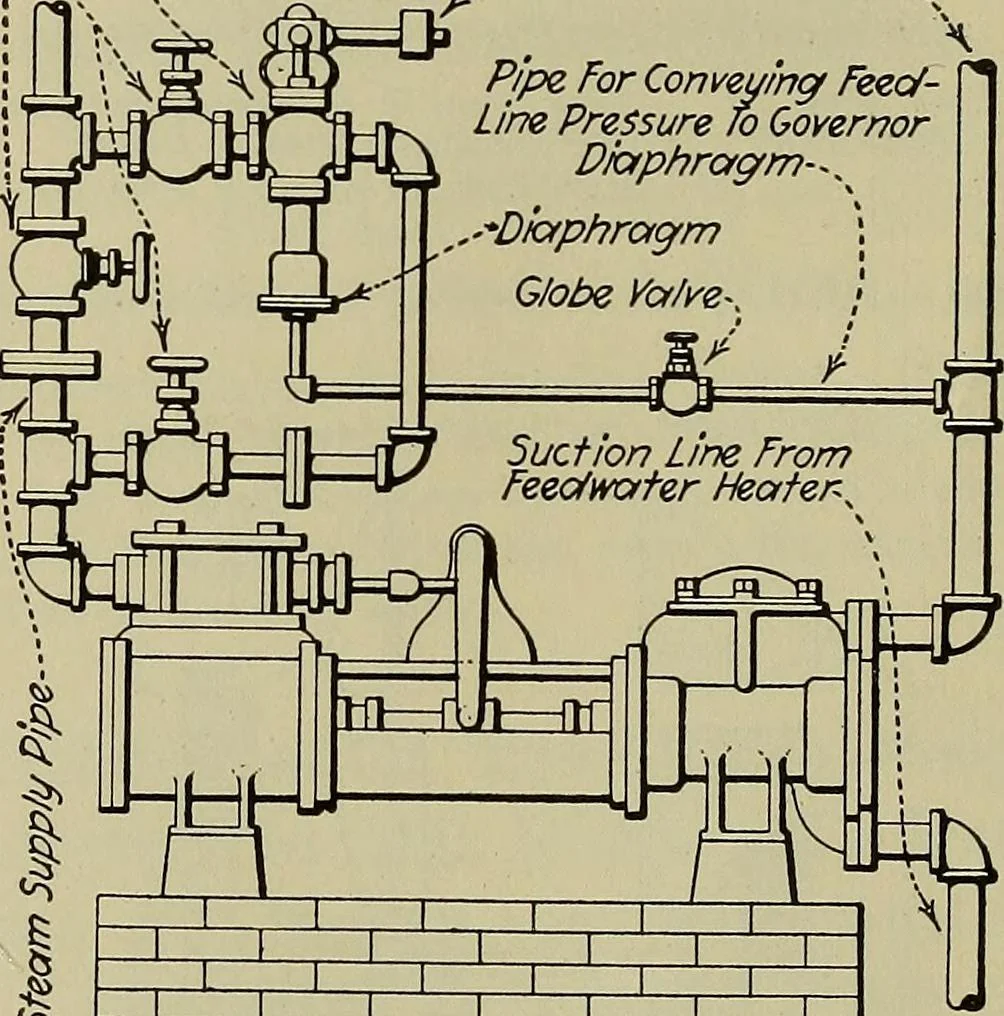

POWER PLANT AUXILIARIES [Div. 6 pump operated directly by steam from the boiler and inde-pendently of the engine. In small plants they will be recipro-cating pumps of either the simplex or duplex type (Fig. 203), /Globe Throttle Valve (For Operation Of Pump With- I Out Governor Control) • /Globe… … Fig. 203.—Direct-Acting Boiler-Feed Pump Equipped With Fulton Governor. In plants of over 500 h.p., they may be either reciprocatingor centrifugal pumps (Fig. 204). Multistage Cen- ,-Fzed Pipe To BoilerstrifugaT Boiler \ Steam Turbine-^ PressureGovernor--^
