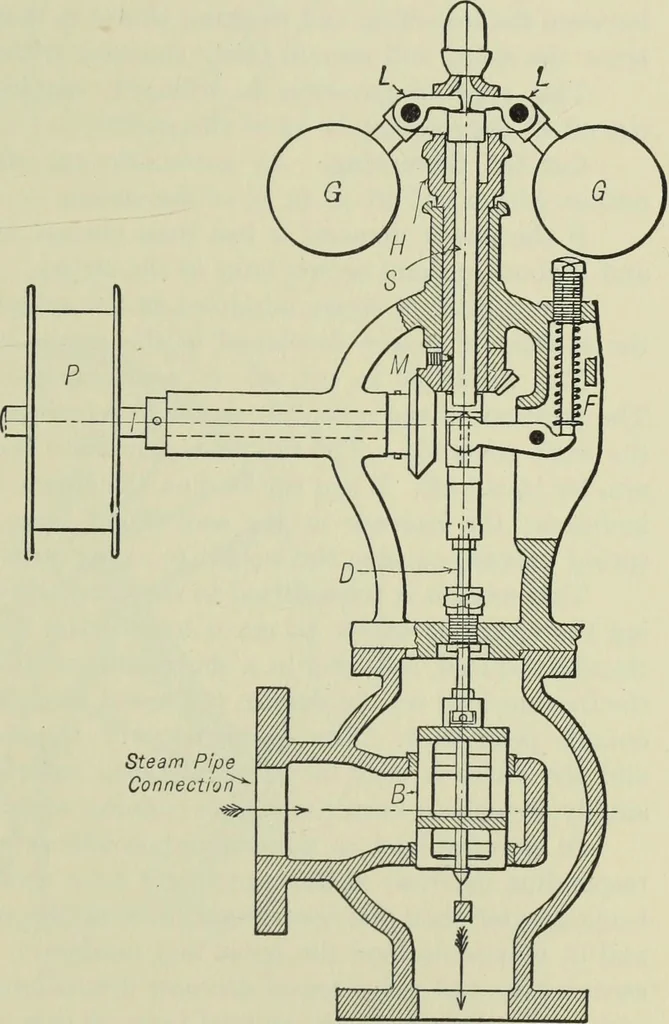

The firstmethod is known as throttle governingand is accomplished by varying the pres-sure of the steam supply. The secondmethod is known as cut off governingand is accomplished by varying theamount of steam admitted to the cylinderby changing the cut off. Throttle Governing. This method ofengine… … Fig. 3. Throttle Governor. 234 POWER PLANTS AND REFRIGERATION The construction of a typical throttling type of governor is shown by Fig. 3. The balancedvalve B controls the admission of steam from the pipe to the steam chest. As the valve islowered it diminishes the free area (throttles) for the…
