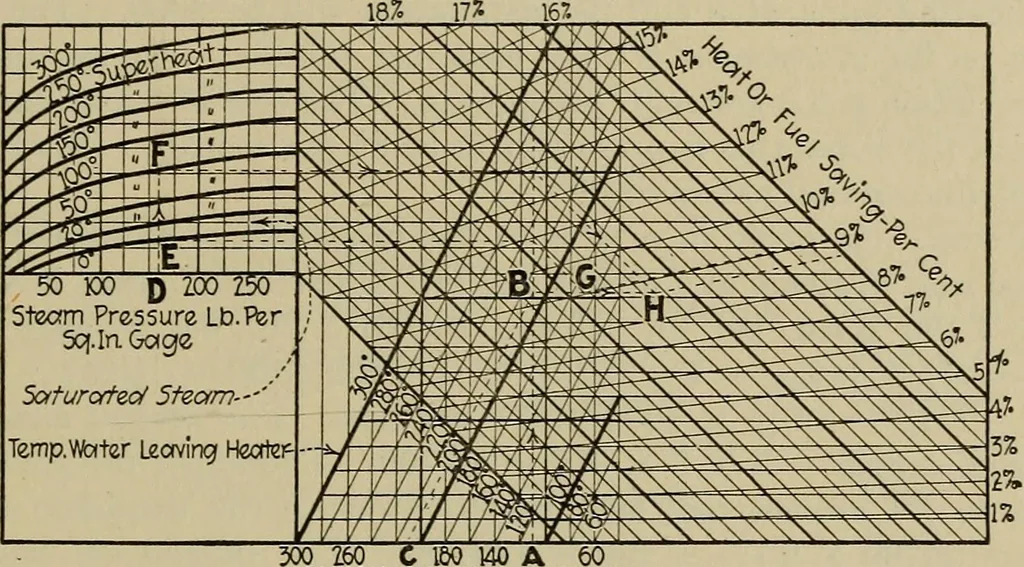

X 100 = 11.4 per cent. 245. The Percentage Of Fuel Saving Due To Feed-WaterHeating May Be Computed Graphically (Fig. 222) for satu-rated or superheated steam. Points A and C, for instance,are found corresponding to initial and final feed-water tem-peratures. A vertical line from A is traced until… … C 150 140 A 60240 200 160 120- 60 40Initial Feed-Water. Temperature Deg.Faht: Fig. 222.—Graph Showing Percentage Of Fuel Saved By Heating Feed Water. scale at the upper left corresponding to the steam gage pres-sure. A vertical line from D is traced to its intersection witha graph for saturated…
