Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 275

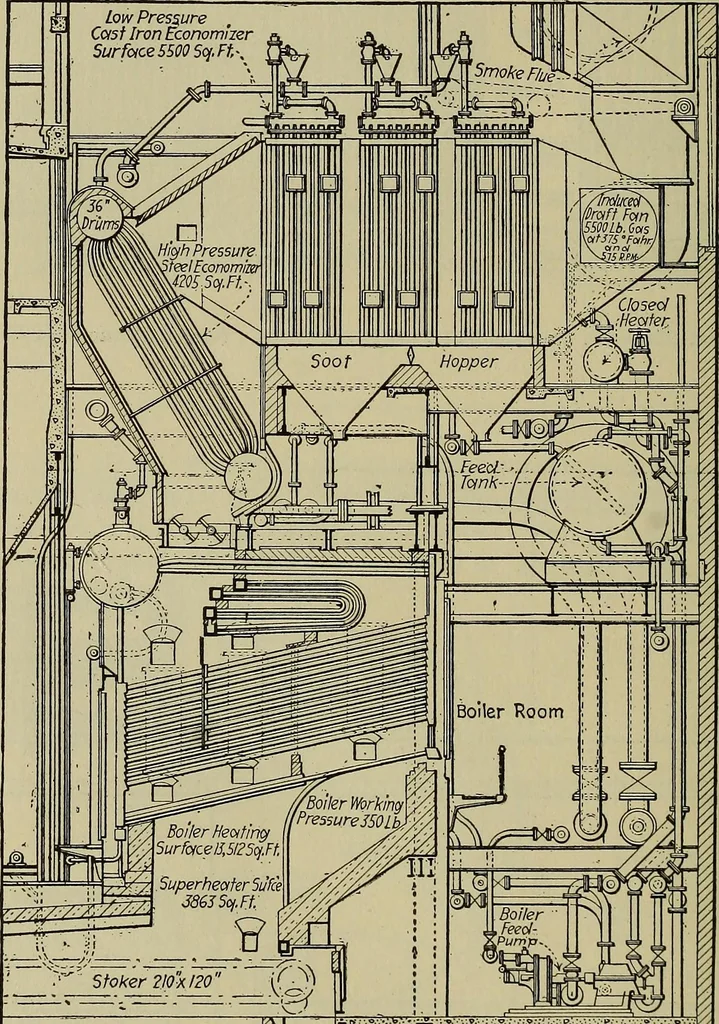

n-EI e v a t i o-n Fig. 256.—A Typical Installation Of Independent Fuel-Economizers. (HamptonMills, East Hampton, Mass.) 254 STEAM POWER PLANT AUXILIARIES [Dnr. 8 boiler setting. The second is located within the boiler setting.Thus, it practically forms an integral part of the boilerstructure. … 1 ^BEgg Fig. 257.—High- And Low-Pressure Economizers. (Kansas City Light And Power Co.) 290. An Independent Economizer (Fig. 255) consists,essentially, of a double series of cast-iron headers, or mani-folds (Fig. 259) which are connected together by verticaltubes. The tubes are commonly made of…
Steam power plants · Pumping machinery
