Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 314

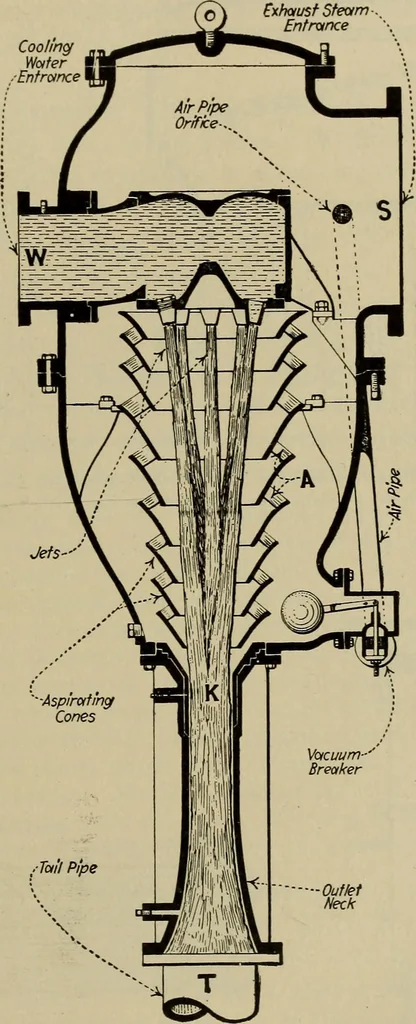

Condenser AndConnections. 335A. The Circulation Of The Water In Surface Condensers may be: (1) A single flow, as where the water passes (Fig. 297)only once through the tubing. That is, the water flows intothe condenser at one end, through the tubes, and out at theother end. (2) A double flow, as… … •AspiratingCones .Tail Pipe OutletNeck Fig. 295.—Koerting Multi-Jet Ejector Condenser (For Large Capacities). of the tubes and returns through the remaining tubes, therebythe water travels twice the length of the tubes. (3) A multi-flow (Fig. 298), as where two or more division plates are in- 294…
Steam power plants · Pumping machinery
