Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 319

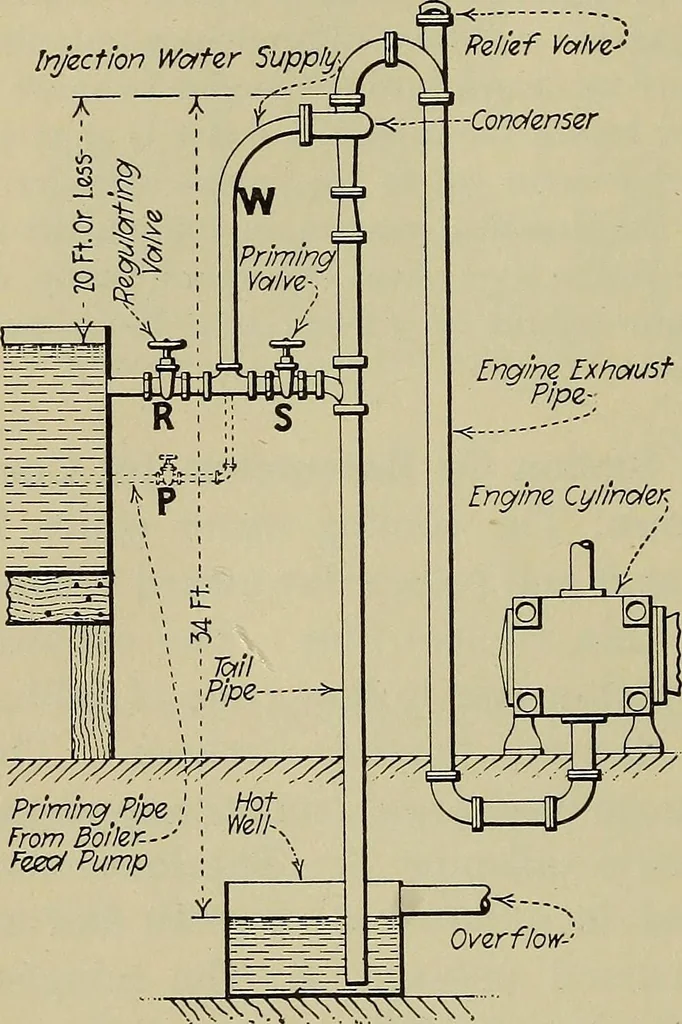

un continuously. 298 STEAM POWER PLANT AUXILIARIES [Div. 9 340. Siphon Jet Condensers May Be Started And OperatedWithout A Pump (Fig. 301) if the injection water is to belifted less than 20 ft. In such cases, the full siphoning actionof the tail-pipe, due to gravity, is produced by a… … duces a sufficient vacuum in thecondenser and upper part ofthe tail-pipe to draw the coolingwater to the condenser throughthe injection pipe W. Thepriming valve, S, is then closed.The flow of injection water isregulated by means of thevalve R. Note.—Sometimes, if the in-jection supply is to be…
Steam power plants · Pumping machinery
