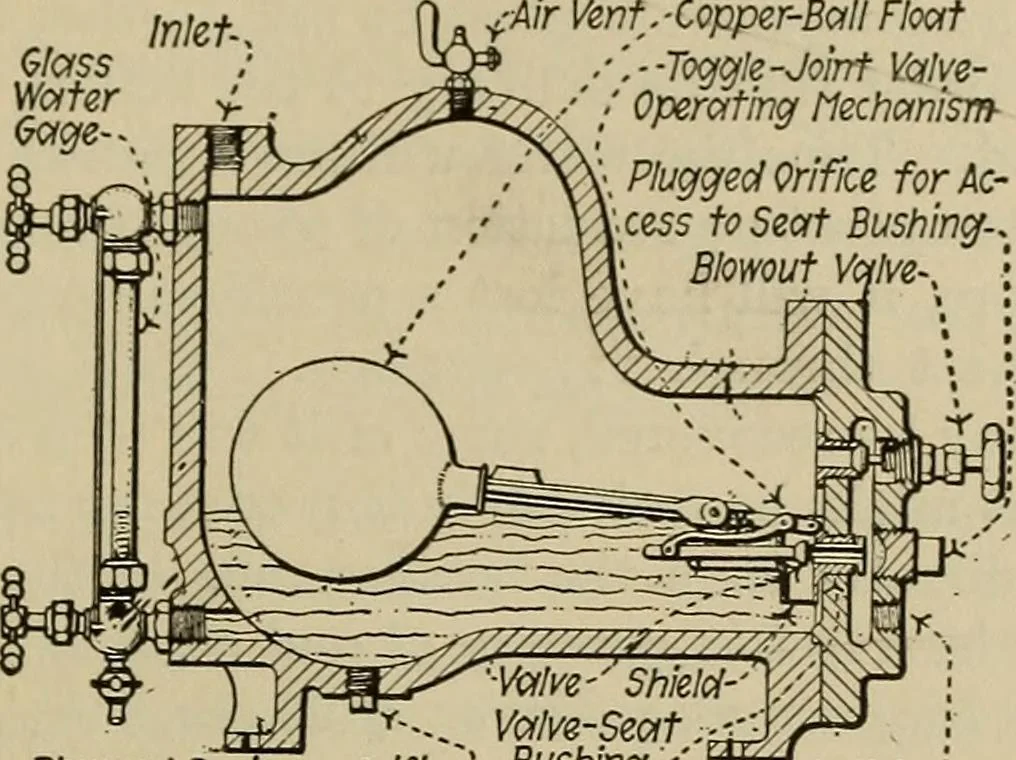

der 100 lb. pressure. Then the weight of the steam, which is admittedto the trap is (as taken from a steam table) about 0.25 lb. per cu. ft.The returned water of condensation weighs about 60 lb. per cu. ft. Now Sec. 490] STEAM TRAPS 407 as stated,of steam,steam. above, 1 cu. ft. (60 lb.) of water… … cu. ft. (0.25 lb.)= 0.0042 lb. of ., Valve-Seat\Plugged Drainage Orifice- Bushing-- ouflet- Fig. 400.—American Ball-Float Continuous-discharge High-pressure Steam Trap. Note.—A portion of the heat of the steam is lost by radiation from thetrap. Also, steam may be lost, at each discharge, through…
