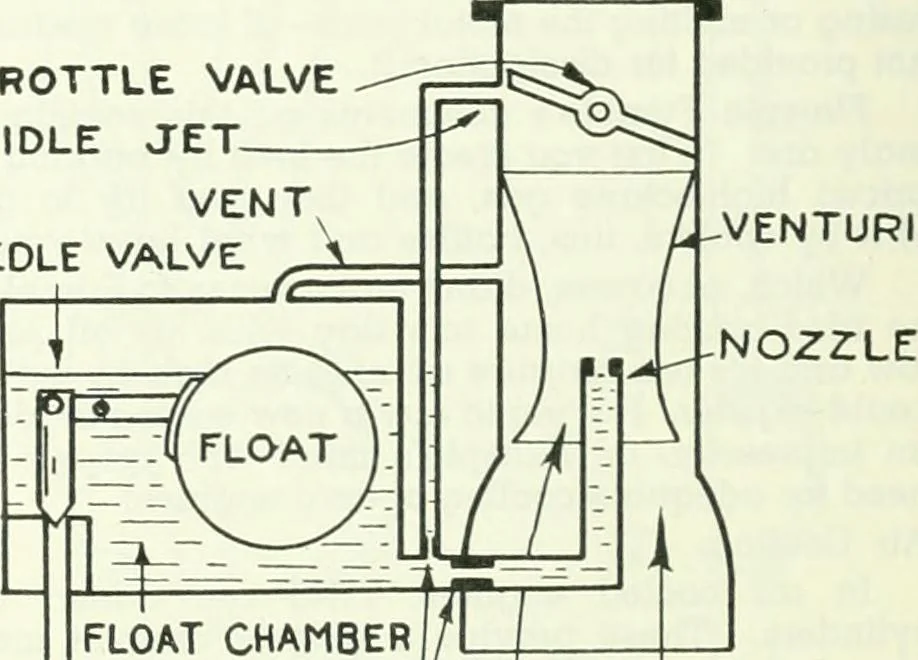

ndicate theeffect, on a typical engine, of varying the Mixture Ratioat full throttle, constant speed. Richest Running Mixture About 1 to Best Power Mixtiure Chemically Correct Mixture Lowest Fuel Consumption Mixture Leanest Running Mixture TOO LEAN a mixture, however, may cause roughengine… … fig. 14. Schematic Diagram. Dry Sump Lubrication System. FLOAT CHAMBER FUEL METERING \l MAIN AIR ORIFICES PASSAGE Fig. IS. Principle of a Simple Carburetor. Aero Engines 117 TOO RICH a mixture may also cause rough engineoperation, appreciable loss of power, or actual failure. An engine will run…
