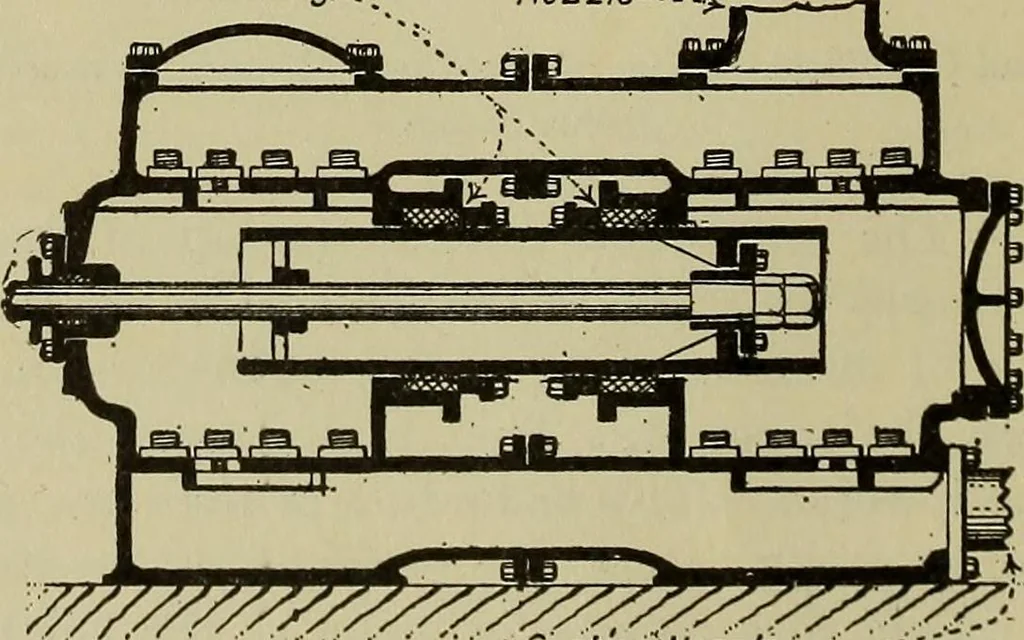

Suction Pipe- ..........^Jnb-I Suction Valve Fig. 28.—Illustrating The Principle OfThe Reciprocating Pump. ■N ■•=■• ■ -- suctwri from Well:1 Fig. 29.—Intake Water Often Flows Un-der Pressure To The Suction Nozzle. 52. The Allowable Velocity Of Flow In The Water-PipingOf A Direct-Acting Steam-Pump… … Suction Nozzle ■Fig. 30.—Outside Center-Packed Plunger-Pump. about 200 ft. per min. (2) For the discharge-pipe of a singlepump, about 400 ft. per min. (3) For the discharge-pipe of aduplex pump, about 500 ft. per min. (4) For the centrifugal Sec. 53] DIRECT-ACTING STEAM PUMPS 41 pump about 600 ft.…
