Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 67

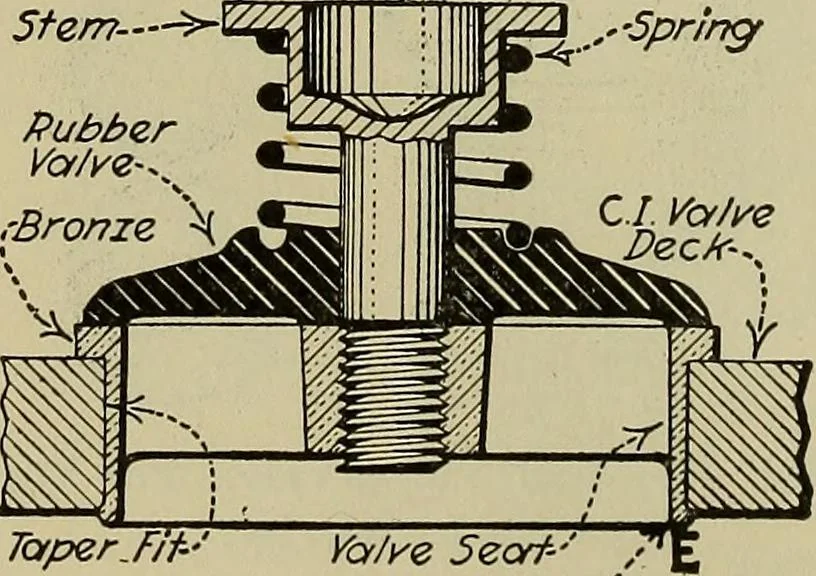

Fig. 48.—Type Of Pump ValveUsed For Clear Liquids. Fig. 49.—Kinghorn Pump Valve. 56. The Kinghorn Valve For Air Pump Service (Fig. 49)consists of three bronze disks, each about 3^32 in. thick, whichare mounted loosely on a central stud. Buckling and distor-tion of the discs is prevented by a guard… … TaperJ/t- Ya/re Seaf-- 71Peaned Edge Fig. 50.—Rubber Valve For Low PressureWarm- Or Cold-Water Service.
Steam power plants · Pumping machinery
