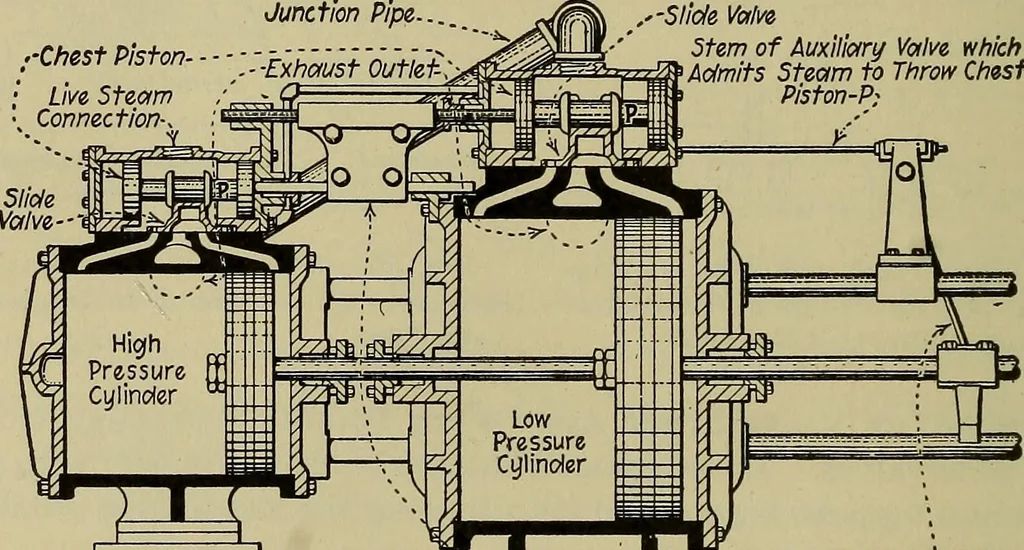

equipped with cushion-valves, C,(Fig. 81) for adjusting the cushioning effect of steam in the compressionspaces. This is done by controlling the flow of steam, through the by-pass, B, from the admission-port A to the exhaust-port E. 75. The Relative Merits And Demerits Of Simplex AndDuplex Pumps… … \\\\\\\\\\\s\\^^^ Connection through which Chest Piston-P, ; Vibrating Rod which Actuates)is Operated by Chest Piston-P- - - Auxiliary Valve-Stem - Fig. 82. -Sectional Elevation Of Steam Cylinders Of A Burnham Compound SimplexPump. must cease during piston-reversal. The water hammer whichtends to…
