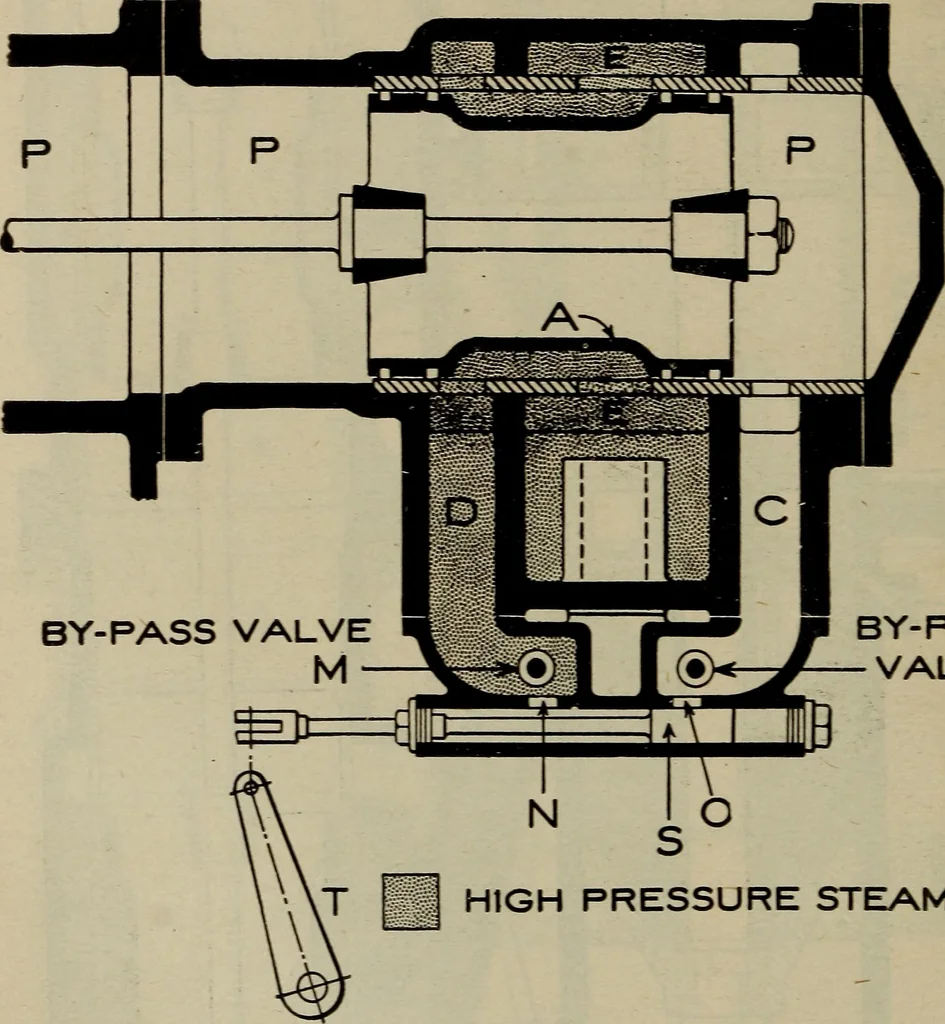

3c8 LOCOMOTIVE ENGINEERING top quarter. Starting valve S closed, as in Fig. 146.Reverse lever in back motion. This admits steam from high-pressure steam chest E,through steam port D, to front end of high-pressurecylinder F. If steam now blows from back high-pressure cylindercock H, the… … BY-PASS VALVE M BY-PASSVALVE HtGH PRESSURE STEAM Figure 145 Testing Low-Pressure Cylinder Packing. Engine on top quarter. Starting valve S open, as in Fig. 145. Reverse lever in back motion. This allows steam to flow through starting valve into low-pressure steam COMPOUND LOCOMOTIVES 3°9 chest P,…
