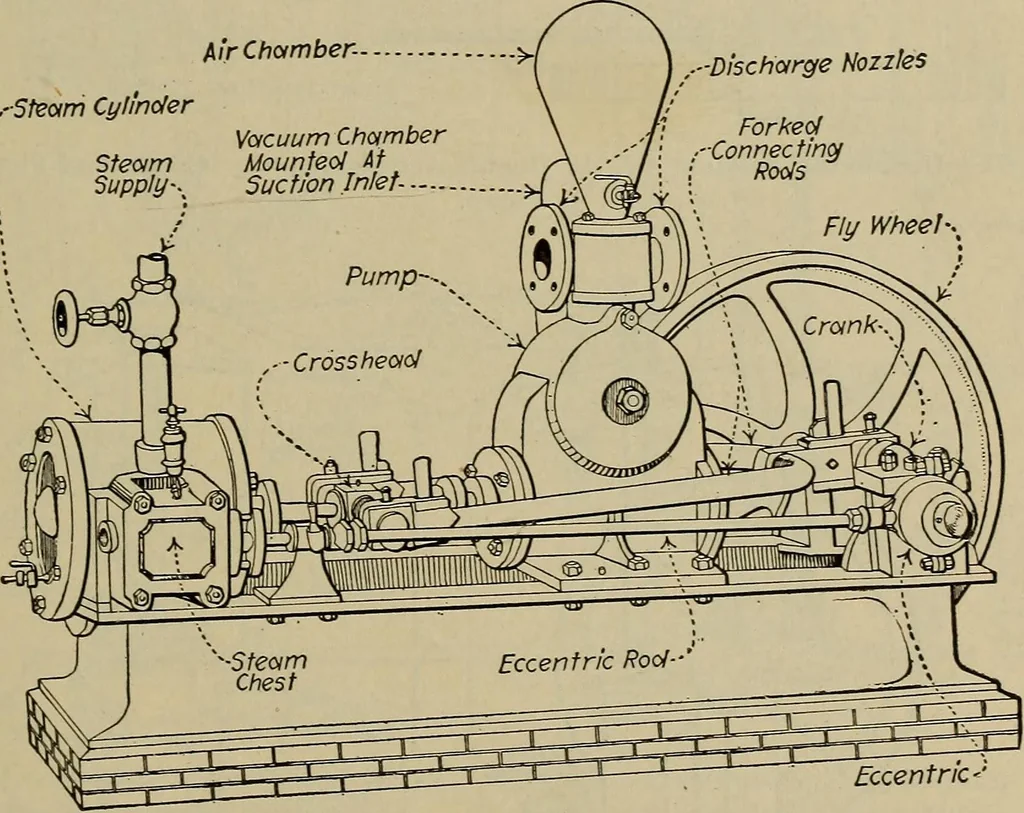

e in each set ofsuction and delivery valves in this pump? DIVISION 3 CRANK-ACTION PUMPS 83. Crank-Action Pumps include piston or plunger pumpsof all forms which depend for their operation on the circularmotion of a crank-shaft. They may be classified as follows:(1) Crank-and-fly-wheel pumps in… … Eccentric < Fig. 84.—Steam-Driven Crank-And-Fly-Wheel Pump. 84 and 85) or indirectly (Fig. 86) from the reciprocatingmovement of a piston in a steam cylinder but is dependentfor its continuance upon the inertia effect of the rotative move-ment of a crank-shaft and fly-wheel. (2) Crank-action…
