Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 124

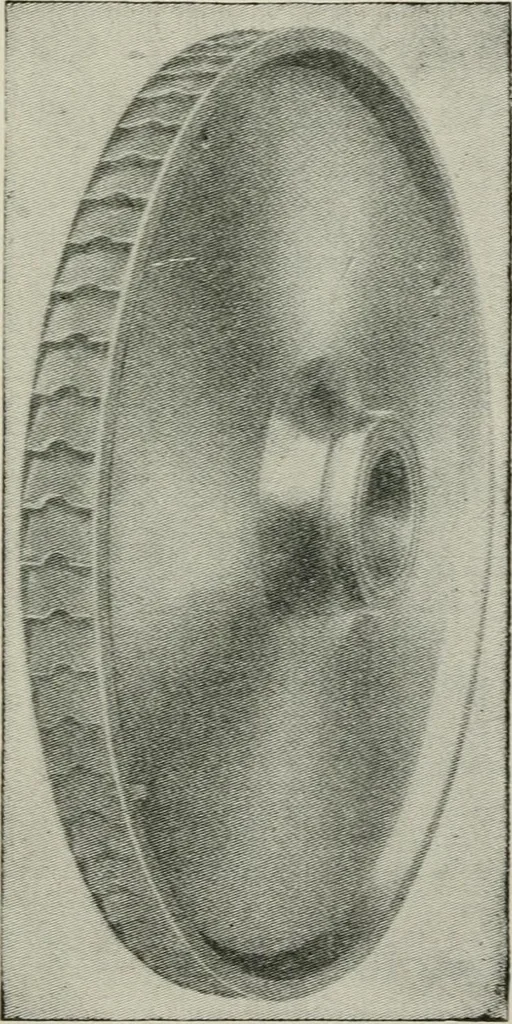

n engine, the dimensions of which have alreadybeen given, was a reversing rolling mill engine. The stuff-ing box used in the Rateau turbine is clearly illustrated inFigs. 240 to 243. The Reidler-Stumpf Steam Turbine This turbine is manufactured in Germany and its essen-tial characteristics are the… … Fig. 29S of one of the wheels, and Fig. 299 shows sections of abucket, and nozzle. The buckets are worked out of a solid forged wheel witha milling cutter, consequently they are very strong, anddurable. 119 uo >t((nn KiKjniceriIII/ Tlie steam jet enters the bucket C from the nozzle B, andis…
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
