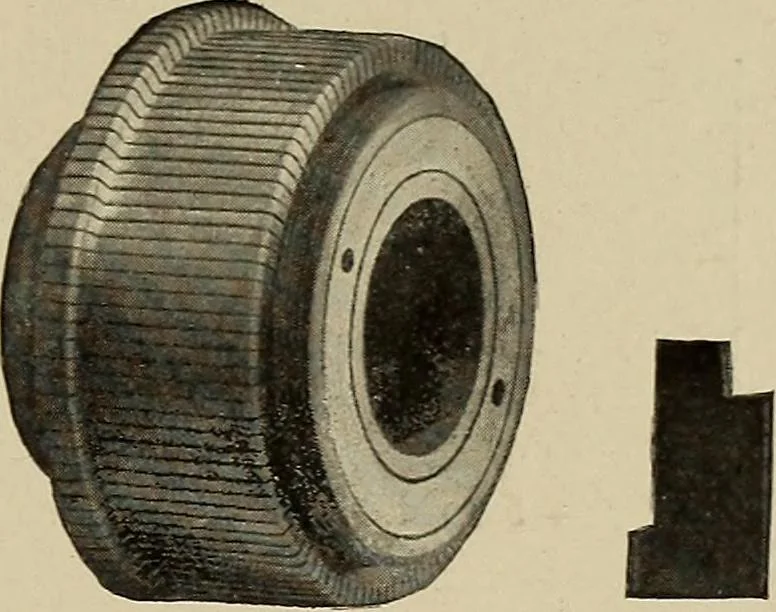

tion motor). There aretwo types of direct current motorin common use, the shunt andthe series motor (see subse-quent chapters). Modificationsof these two types are the com-pound motor and the interpolemotor. The armature of a directcurrent motor consists of aniron core made up of laminatedsheets of… … connected to copper segments insulated from each otherwith mica, constituting the commutator, Fig. 64. Thecoils are wound upon the arm-ature so as to form the propermagnetic circuits when a cur-rent is sent into the commu-tator by means of the brushes.There are many forms of arma-ture windings…
