Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 58

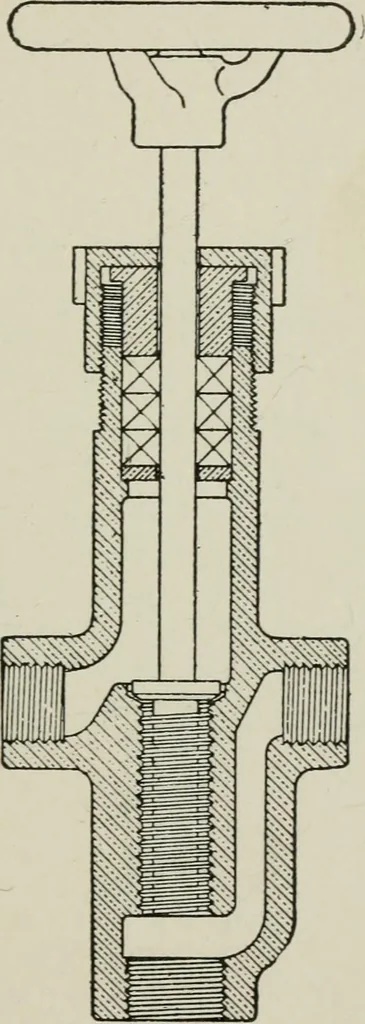

he valve at the top of this tankshould be kept closed, and the oil allowed to compress theair contained, in the tank, and from time to time the tankshould be completely emptied and refilled with air. The Tlie Curtis Turhine 53 emptying can be easily accomplished by opening the three-way valve to… … ^nr FiG. 204 In installations where oil is used for the turbine stepbearing, oil for the operating gear and bearings may betaken from the high pressure pipe line, on the pump sideof the step baffler, through a reducing valve. The piping 04 .S^cfl/« Engineering system remains as shown…
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
