Locomotive breakdown questions answered and illustrated (1907)
Wallace, W. G · Chicago, F. J. Drake & Co. · leaf 91

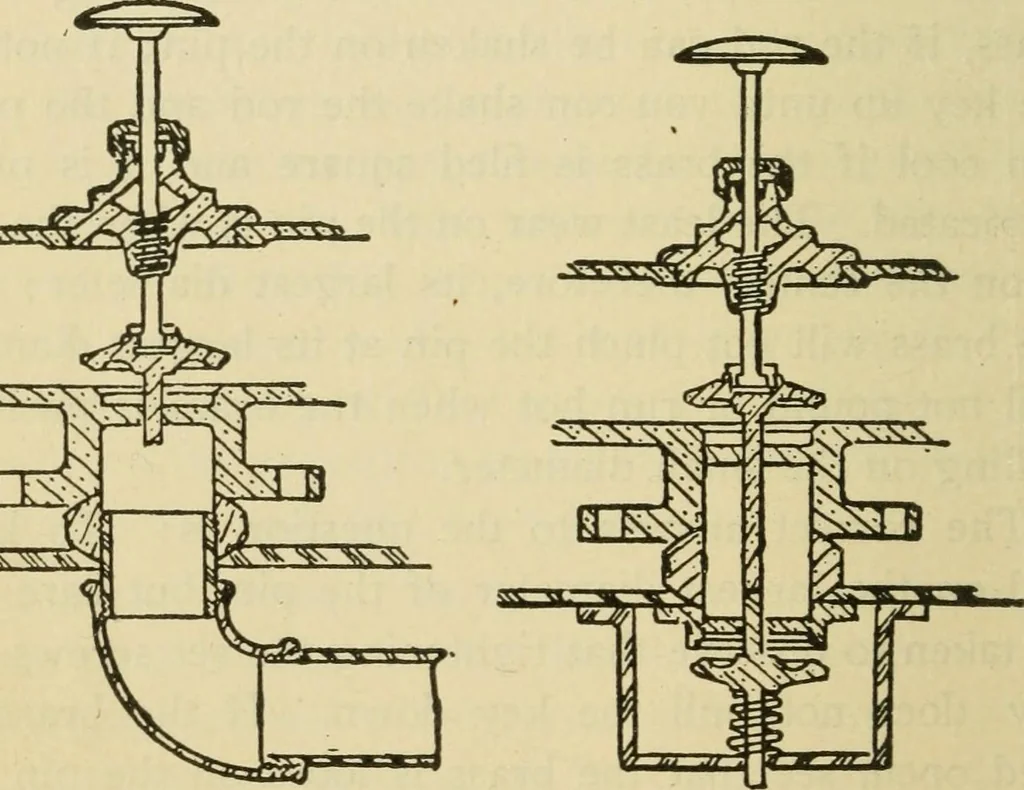

.The main steam valve to the turret or combination valveis wide open and the other boiler attachments such as 82 LOCOMOTIVE BREAKDOWN QUESTIONS blower, lubricator, and air-pump work all right. What isthe trouble? Answer.—It is evident that the trouble is not in theinjectors, as they will work all… … Fig. t. Fig. 2. Obstructed Flow of Steam to Injector Throttle. the steam pipe leading from the dome to the combinationvalve or turret. A rivet, stud, or nut may have beendropped into the steam pipe, which would obstruct theflow of the steam from the boiler to the injector throttles,or the area of…
