Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 59

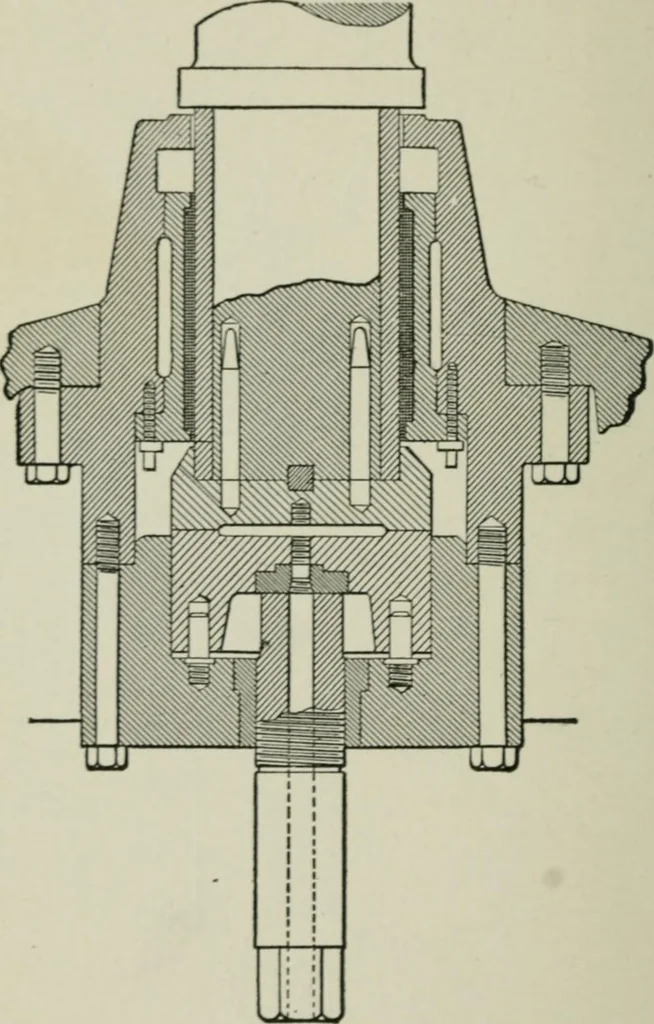

^nr FiG. 204 In installations where oil is used for the turbine stepbearing, oil for the operating gear and bearings may betaken from the high pressure pipe line, on the pump sideof the step baffler, through a reducing valve. The piping 04 .S^cfl/« Engineering system remains as shown… … FiG. 265 sor, this equalizing tank may be piped in the system, theconnection being made on the side of the tank (as providedfor). The refilling of the tank is thus much simplified,and its capacity for emergency operation greatly increased. The Curtis Turbine 55 Care should be taken to insure…
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
