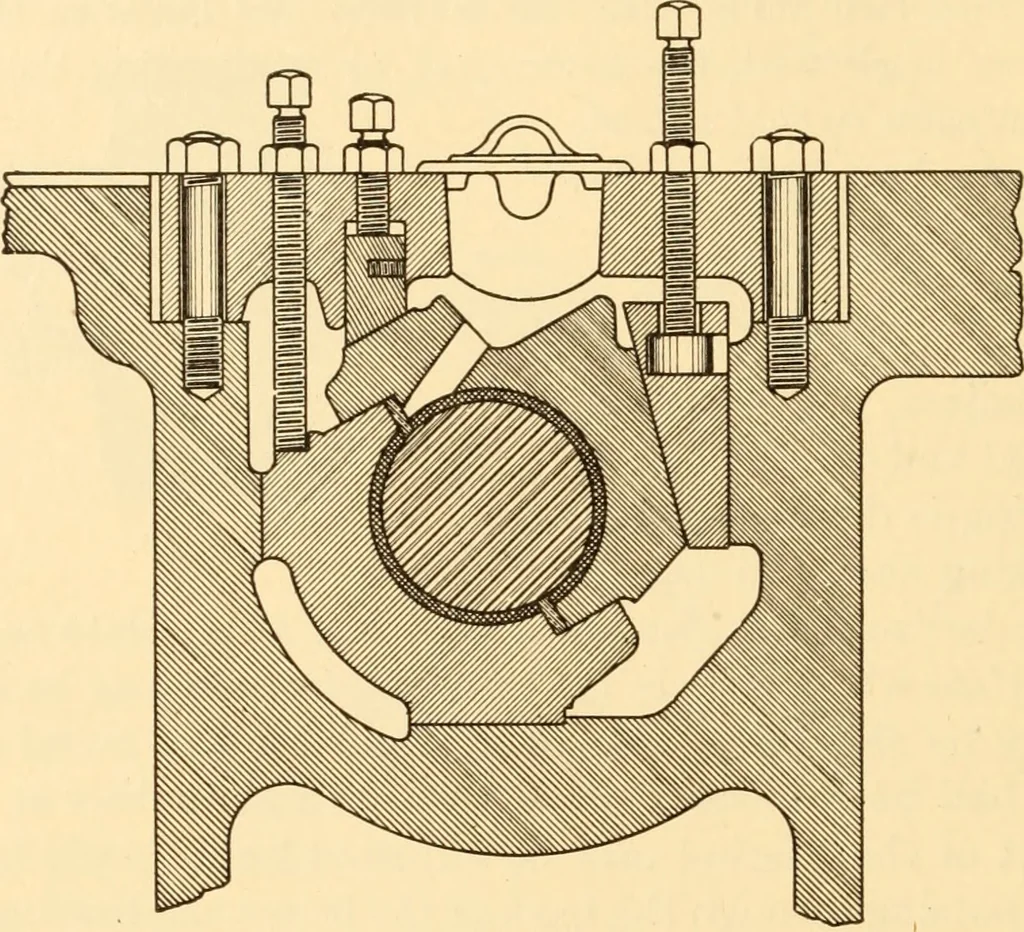

rests on the flat plate at thetop and is held in place by bolts passing down into the frame.The bearing is lined with babbitt metal having a series ofdiagonal grooves cut in it for distributing the oil throughout thelength of the bearing. The bearing shown in Fig. 42 is similar to the above… … Fig. 42. Large horizontal engines usually have main bearings of the typeshown in Fig. 43. In this type the bearing is divided into fourparts, the side pieces being adjustable. One of these side pieces
