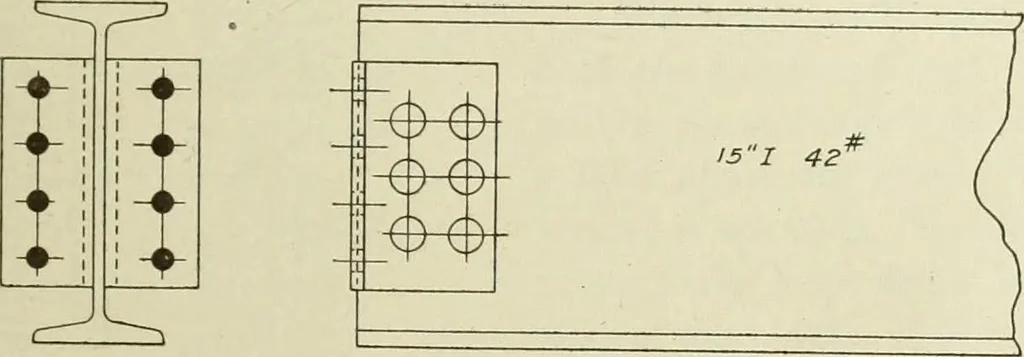

^--^T It is used only for practice. 2. Fig, (Hi shows a hanger connected to the underside of an I-beam.The hanger is made of 2 Ls 4X3Xf* and carries a load of <).r>,()()()pounds. Determine the following:Size of rivets Total section of two angles Net section of two angles after deducting one… … Fig. 67. Side and End View of Standard Beam Connection that one-half of load is transmitted through the lug angles) Number of shop rivets to connect hanger to gusset plateNumber of shop rivets to connect gusset plate to top anglesNumbei of field rivets (in tension) to connect top angles to…
