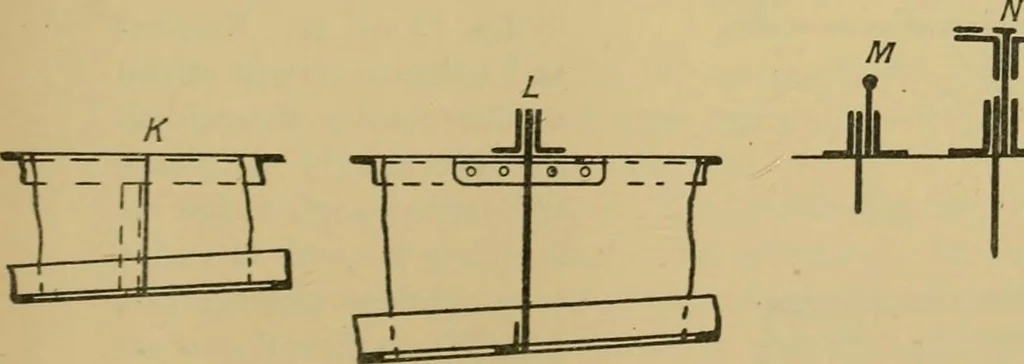

Showing Centre Through-plates fitted upon Flat Plate Keels.Fig. 135.—Centre Through-plate Keelsons for Vessels having Side Bar Keels. top of the angles to the bottom of the floors, and connected to the shellby another angle bar as illustrated in fig. L. The bulbs and intercostalsare often extra… … JL jL Fig. 136.—Side Keelsons. vessels, a thin plate is fitted intercostally between the floors to which it isconnected. The principal function of this plate is to check the wash ofbilge water when the vessel is rolling. Hence it is called a wash plate 212 STEEL SHIPS. ■I m°\ ° ° ° /. J Jo o…
