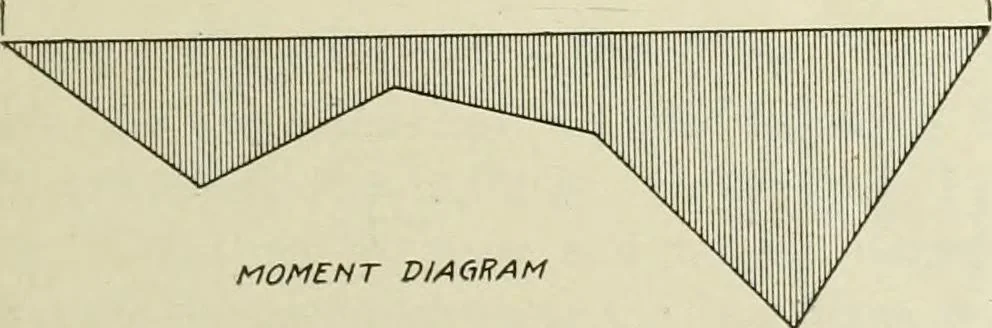

SHEAR DIAGRAM … MOMENT DIAGRAM Fig. 79. Overhanging Beam with Concentrated Loads. Shearand Moment Diagrams P, 780,000.12 = 65,000 # To determine the reaction Rv take moments about R2:0X15,000 (P5)= 00,0004X15,000 (P4) = 60,0008X15,000 (P3) = 120,00012X15,000 (P2) = 180,000 16 X 15,000 (Px) = 240,000 600,000…Building, Iron and steel · Steel, Structural · Theses
