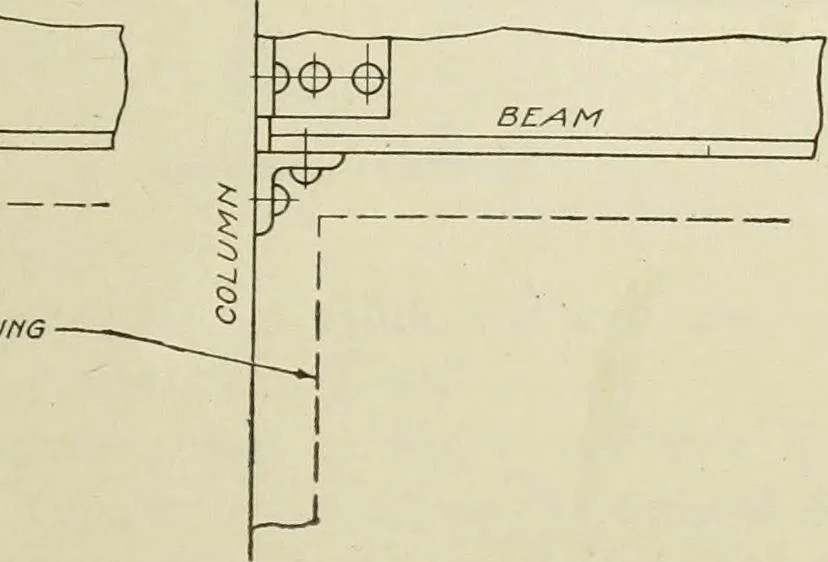

Fig. 99. Web Connection of Beam to Column > … Fig. 100. Diagrams Showing Disadvantage of Seat Connection for Fire-Proofing angles were shop riveted to the beam, but the shop riveting on thebeam will be eliminated, which is an advantage. When this connec- STEEL CONSTRUCTION 127 tion is used, a small scat angle is provided for convenience…
