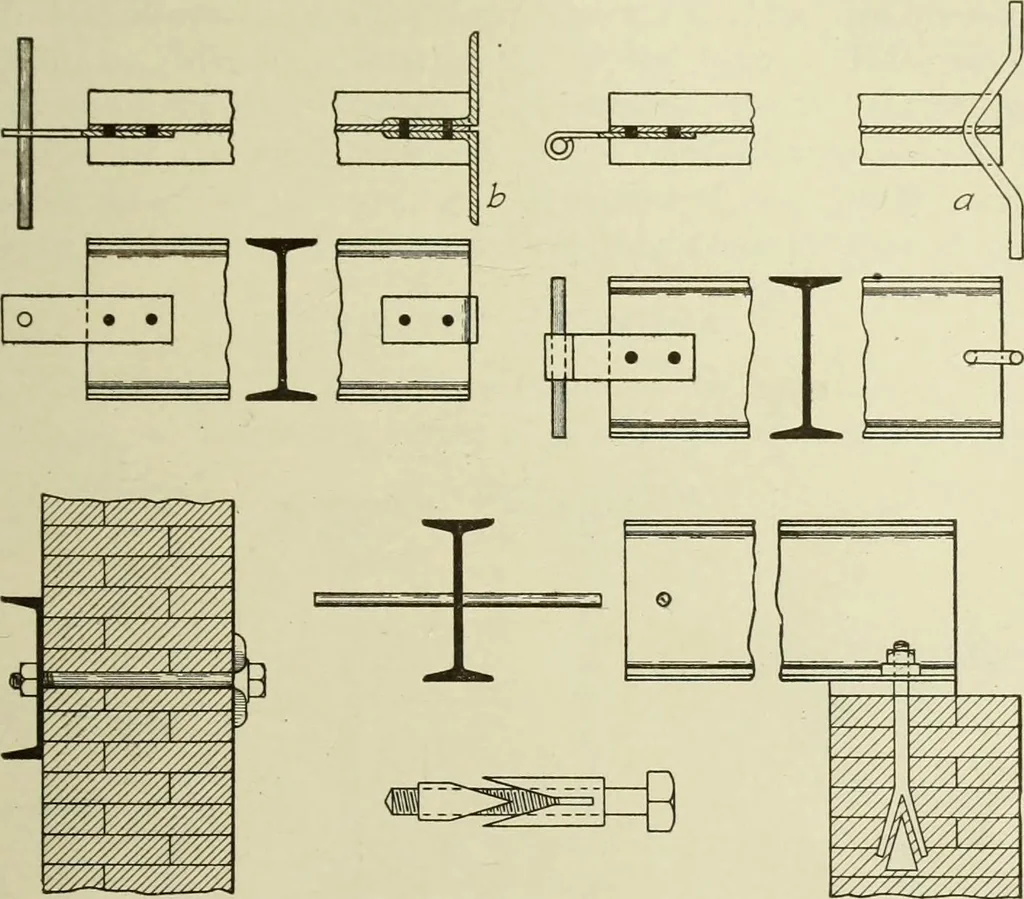

h STEEL CONSTRUCTION 133 bearing. A penetration less than 8 inches should never he used forbeams 8 inches or more in depth. Because all beams deflect underload their hearing plates should he set with a slight slope downwardtoward the face of the wall, J inch per foot heing a satisfactory slope.This… … Fig. 110. Anchors for Beams I-beams or channels should be used for the bearing, Fig. 109. Theseare designed as inverted cantilevers in the regular way. Cast-iron Plates. The foregoing discussion relates to steelplates. Cast-iron plates may be used. The method of designingthem is the same as for…
