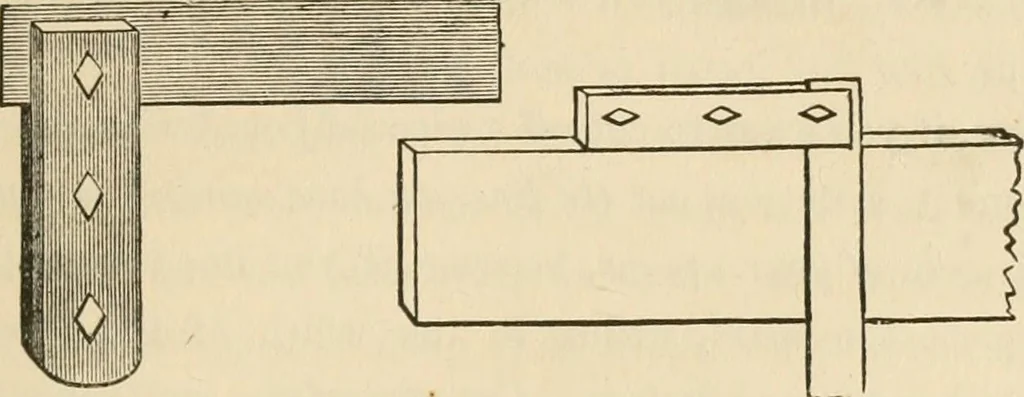

f an inch weremade ; but you will not yet understand how it is possibleeven to measure so very small a quantity. You shouldcertainly learn and understand how to measure with a THE SQUARE. common two-foot rule, and when you can add one to yourbox of tools, do so. Now, let us examine the tool called… … Fig 6. Fig. 6. It is a handle and a blade, like a knife half opened, the ontbeing fixed exactly square, or at right angles with theother. The blade is thinner than the handle, and whenthe latter is placed as in Fig. 6, a line marked across theboard against the edge of the blade will be, of…
