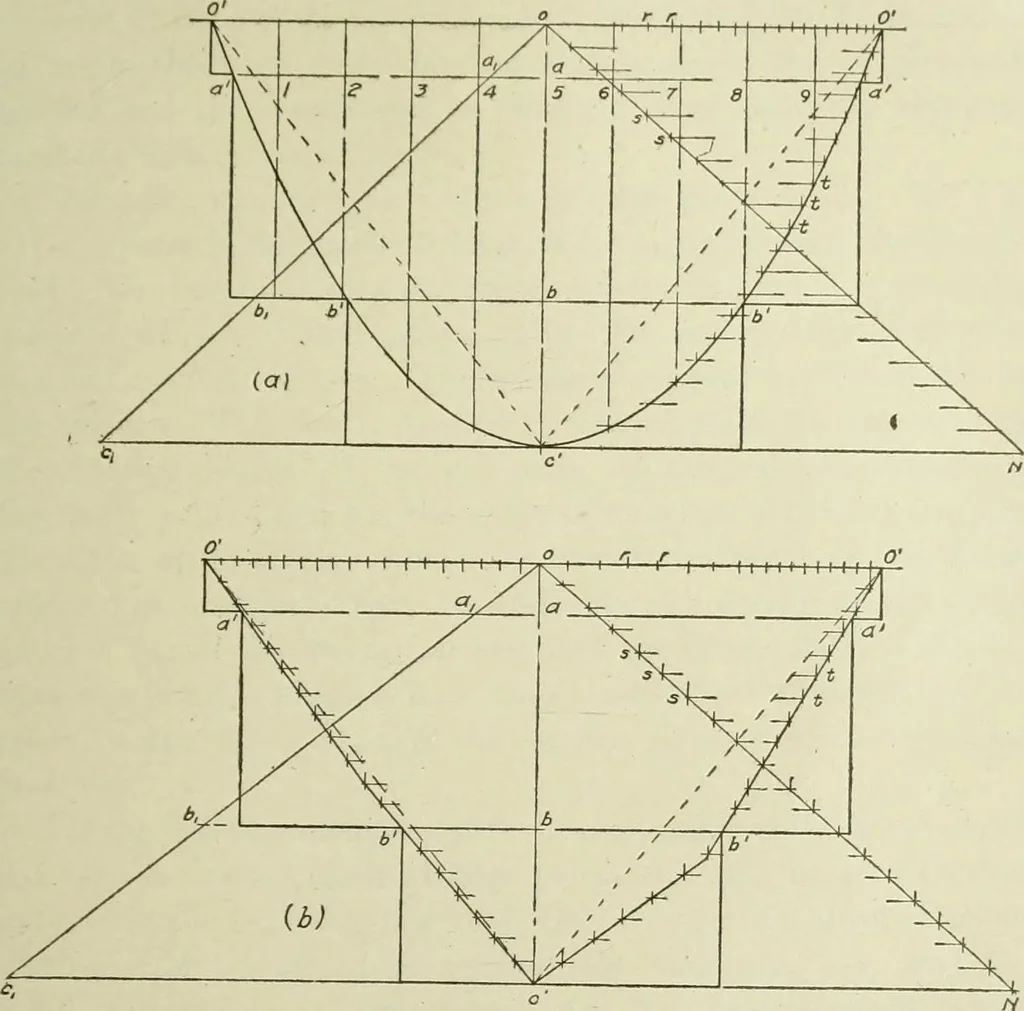

tes is preferred. Width of Flange Plates. The width of a flange plate is limitedby the permissible projection beyond the outer row of rivets. Thelimits are eight times the thickness of the plate, or a maximum of 144 STEEL CONSTRUCTION six. inches. In the above example this limit is 8Xf* or 3.… … Fig. 117. Graphical Method of Determining Length of Flange Plates, (a) For Uniforur lyDistributed Loads; (b) For Concentrated Loads mum width is 20 inches, and for 8-inch angles, 24- inches, but 18 and20 inches, respectively, are preferable, and 14 inches and 18 inchesare most used. When more than…
