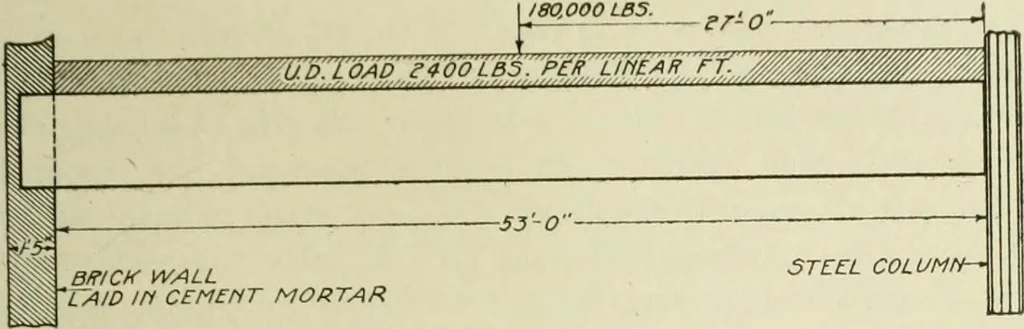

he designdrawing for the girderwhich has been developedin the preceding pages,using Case B, that is, agirder with flange plates. Problems 1. Design a plate girderfrom the data given in Fig.121. Make the design draw-ing at f-ineh scale. 2. Design a plate girderhaving the same span as theone in Fig.… … Fig. 121. Data for a Plate Girder Design are of much assistance in arriving at the approximate section of therequired girder, but usually the final design must be computed indetail, as in the foregoing example.
