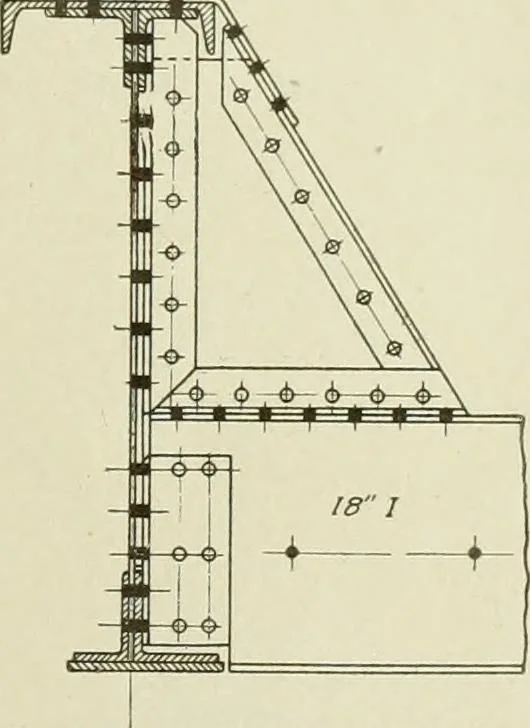

^2PL 6*%. Fig. 134. Splice in Plate Girder … Fig. 135. Bracket for BracingTop Flange of Girder Of course, in a field splice all the elements are joined at one place.The method of computing is the same as has been given for theindividual parts of the girder (bearing in mind that the rivets arefield driven). Fig. 134 illustrates such a splice…
