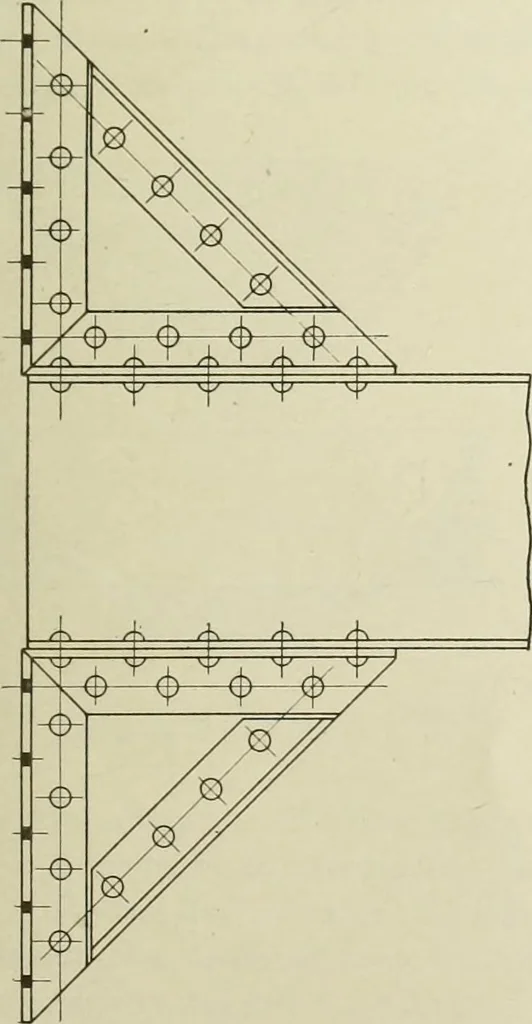

Fig. 190. Connection of I-Beam to Flange Fig. 191. Connection of I-Beam to side of of Column For Wind Bracing Column for Wind Bracing … Fig. 192. Bracket Connection of I-Beam forWind Bracing The detail in Fig. 190 issimilar to the connection shownin Fig. 180. It can developonly a small part of the capa-city of the beam. The detail in Fig. 101 alsocan develop only a part of thecapacity of the beam, but it isavailable for making use…
