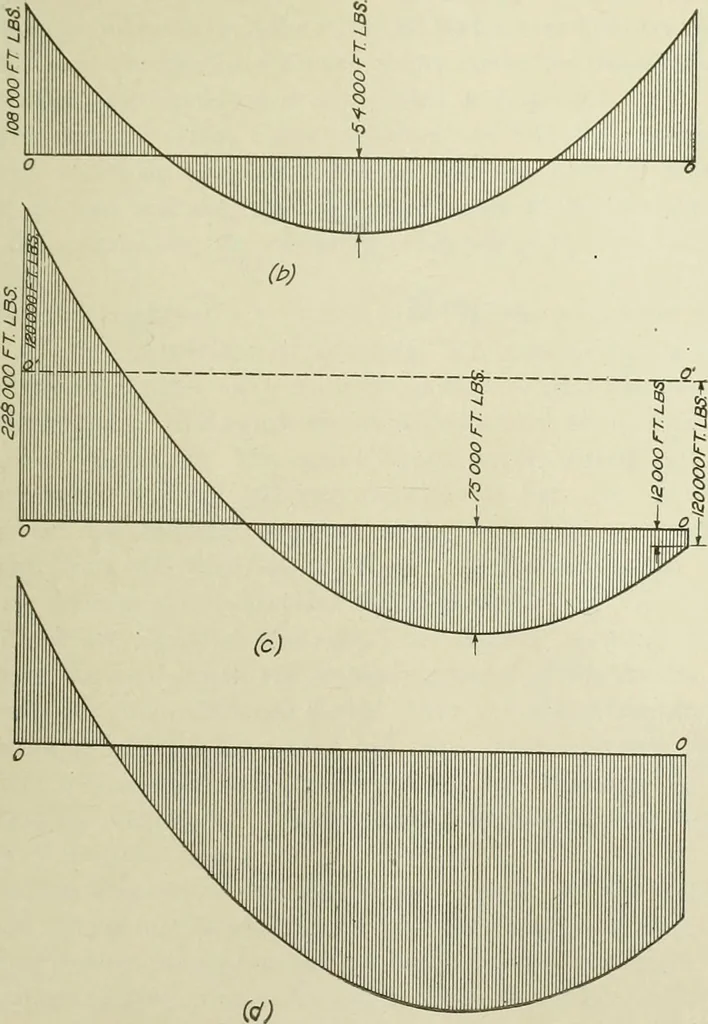

ction accordingly. But a less value may be used atthe ends and a corresponding greater value at the center if it isnot possible to make end connections strong enough to resist thelarger value. Bending Moments for Combined Loads. Now consider thebending moments resulting from the combined action of… … Fig. 194. Moment Diagrams for Combined Loads(a) Wind Load (b) Gravity Load (c) Combined Wind and Gravity Loads (d) Maximum Bending Moment Diagram STKKL CONSTRUCTION 20., the combined loads. This moment diagram c is constructed byadding together the moments used in constructing the diagrams aand b.…
