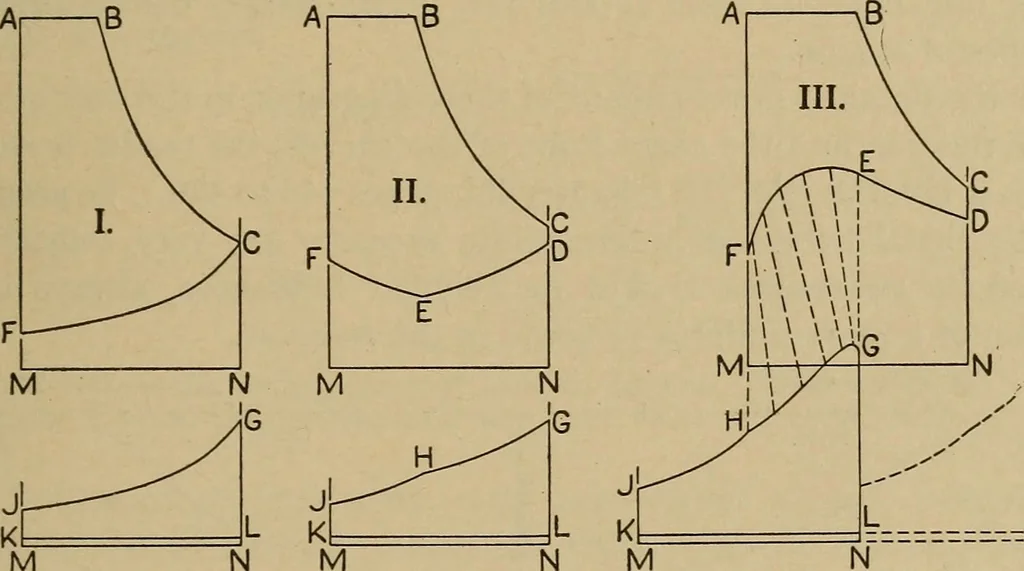

on compound. Second, if the twostrokes are not timed together, as when there are two cranks at rightangles to each other, the receiver is essential, and we call this a receiver-compound engine. Engines of the first class may have the cylinders placed in line(tandem) or side by side (parallel); and… … M N M N M Fig. 77.—Typical Cases of Receiver Action; Ideal Diagrams, for cylinders having no clearance space. (d) Lines of Intermediate Pressure. — The characteristic effectsof the changes in arrangement just described are illustrated in Fig. 77:all the variations occur in the lines which…
