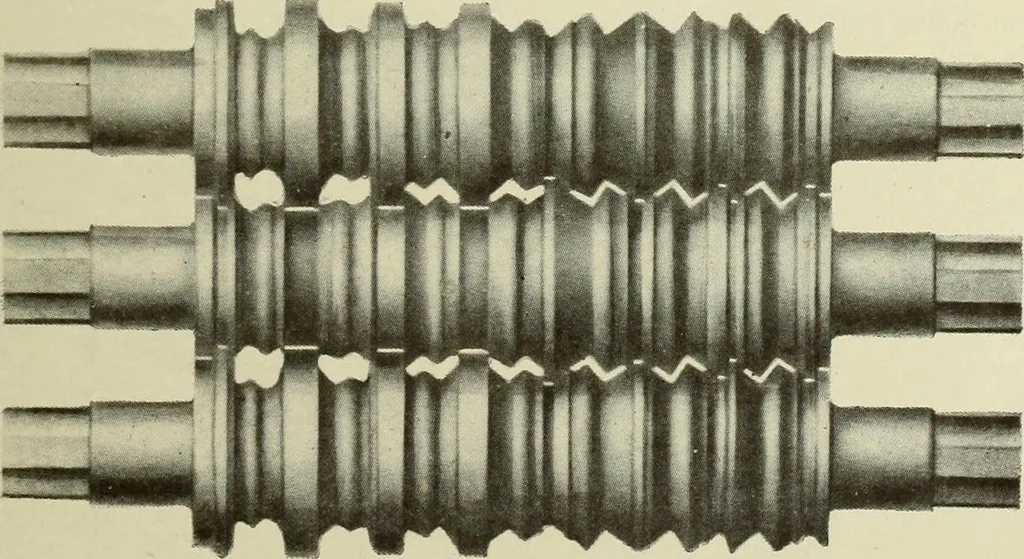

Fig. 19. Three-High Equal Angle Finishing RollsCourtesy Seaman, Sleeth Company Plate Rolls. A three-high set of plate rolls is shown in Fig.21.* There is nothing to control the width of the plates, thereforethe edges of plates rolled in this mill will be uneven and must besheared to the correct… … Fig. 20. Three-High Z-BarsCourtesy Seaman, Sleeth Company STEEL CONSTRUCTION 21 control the width, as shown in the left hand view, Fig. 22. Such amill is called a Universal Mill and the plates produced by it are
