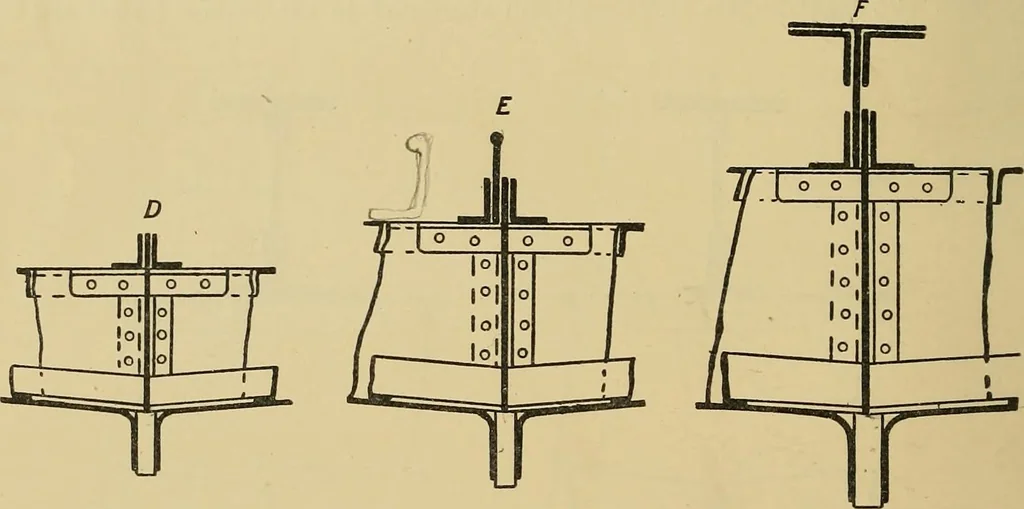

ding from the top of thekeel to the top of the keelson angles. The intercostal plates are connectedto the floors by single angles as shown. Figs. E and F are similar keelsonsfor vessels of larger size. The intercostal plate in each case extends to thetop of the lower keelson angles. Fig. 135, G, H,… … JL Jl Showing Intercostal Plates fitted upon Flat Plate Keels.Pig. 134.—Intercostal Centre Keelsons. to the top of the floors. Along its upper edge, and riveted to the floors,is a broad thick plate, connected to the centre through-plate by the twolarge angles shown on its upper edge. It will be…
