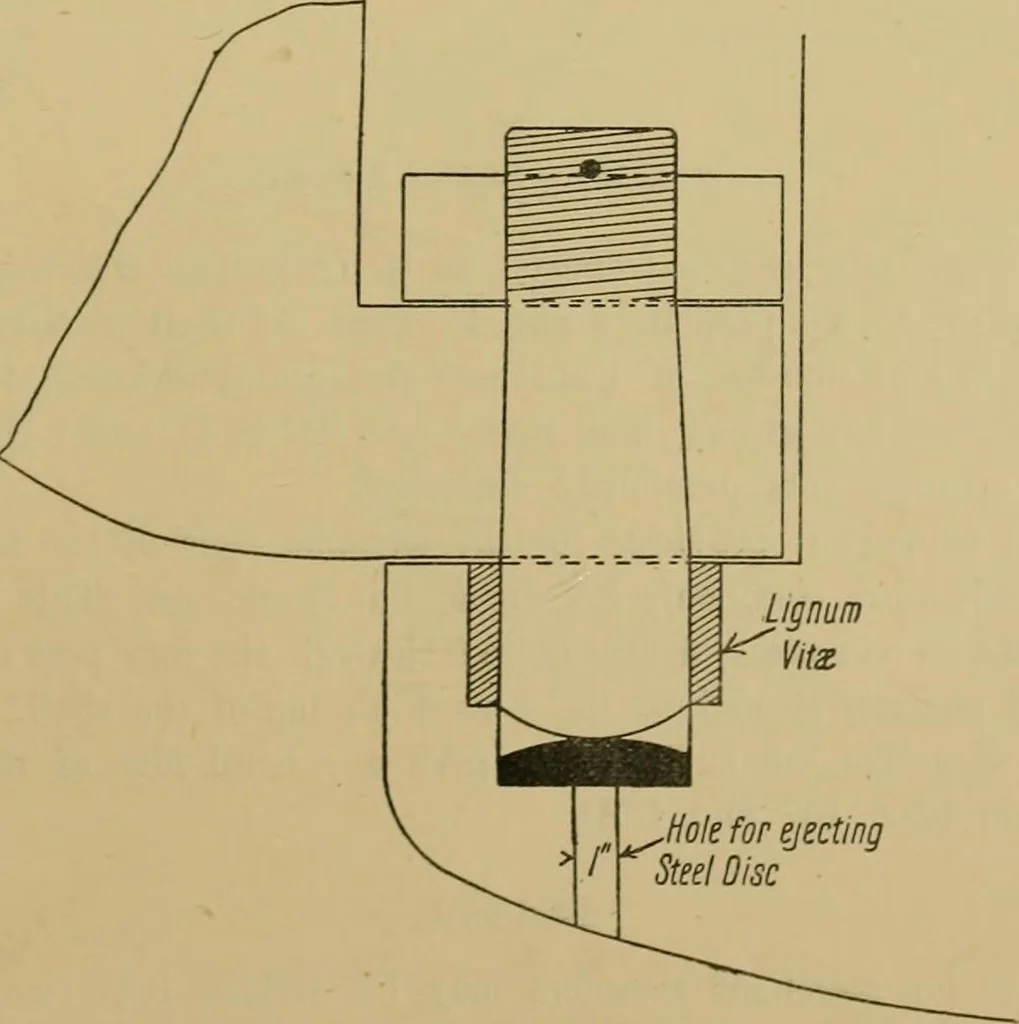

Fig. 150.—Locking Pintle. frames round the shaft in the neighbourhood where it would emergethrough the shell plating, and at the aftermost extremity supporting the … Fig. 15L—Bottom Pintle. 238 STEEL SHIPS. shafts by means of struts such as shown in figs. 153, 154, 155, and 156.These struts may be either forgings or castings. In fig. 153 there is a stern frame somewhat after the pattern requiredfor a single screw. The aperture in this case is necessary, because…
