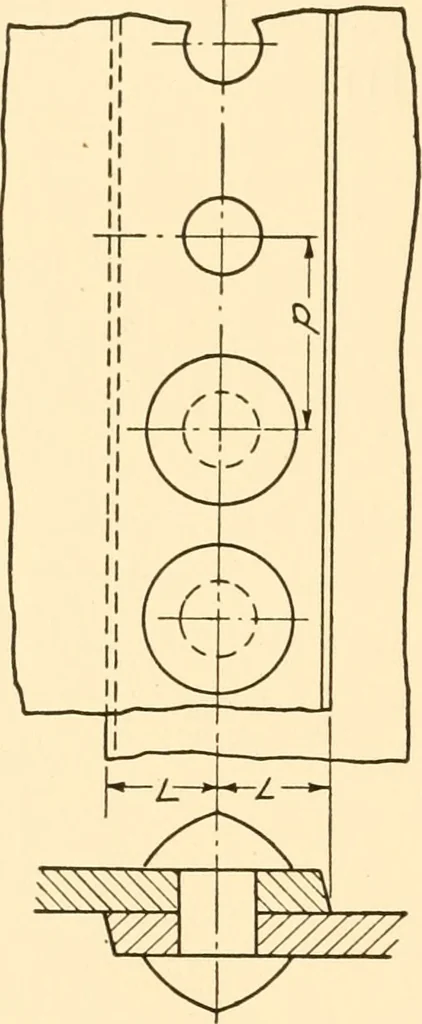

r the common form of Fig. 135. Lap Joints. — When two plates lap over each other and areheld by a row of rivets as in Fig. 136 it is called a single rivetedlap joint. A double riveted lap joint is shown in Fig. 137. Thedistance between the centers of two rivets in the same row is 57 58 ESSENTIALS…
