Steel ships, their construction and maintenance : a manual for shipbuilders, ship superintendents, students, and marine engineers (1901)
Walton, Thomas · London : Charles Griffin & Co. ; Philadelphia : Lippincott · leaf 56

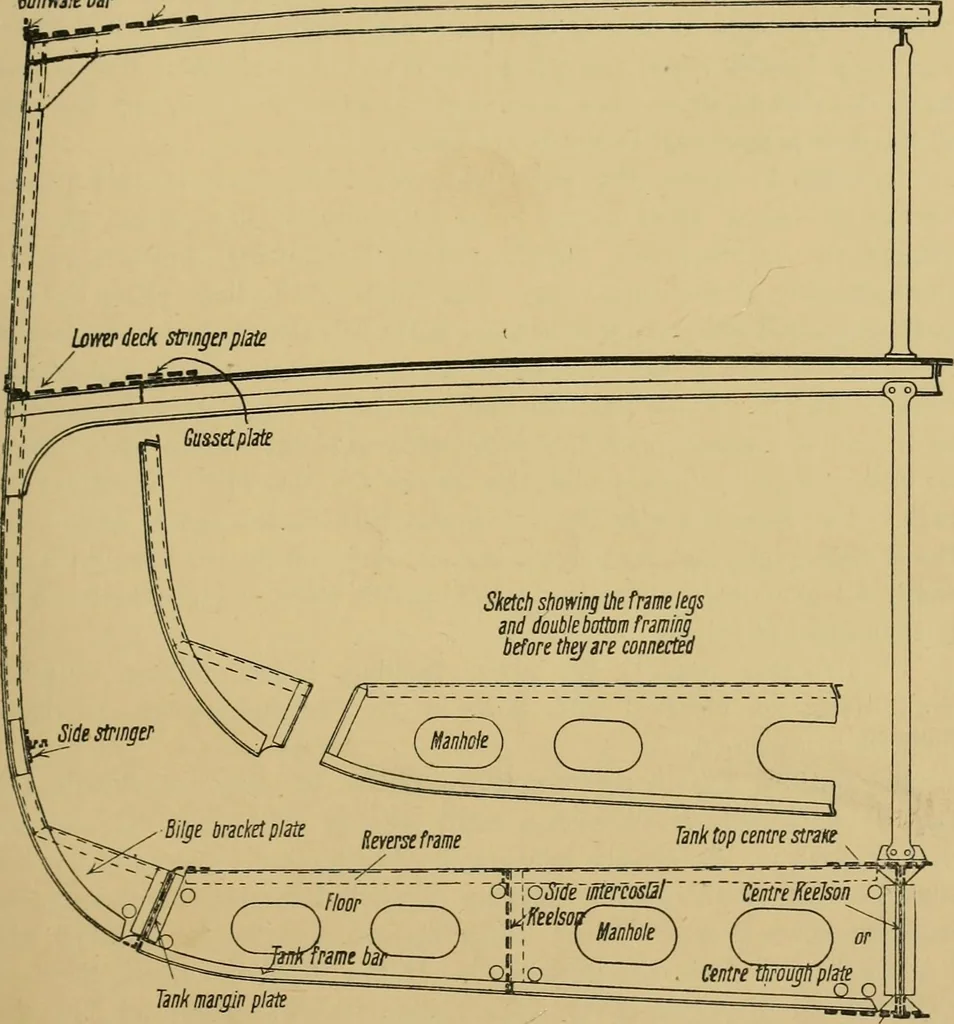

ONSTRUCTION. is that known as tlie cellular double bottom. The transverse framingof this system (and longitudinal framing dotted) is illustrated in fig. 7. Examination of the diagram shows the arrangement of the transverseframing to be somewhat interfered with, though, in effect, this… … Jdnk wargn plate Keel plate Fig. 7.—Midship Section showing Transverse Framing in a Vessel with aCelhilar Double Bottom, also the Longitudinal Framing (dotted). from the keel to the top of the floors. Here we usually find that acontinuous deep plate runs fore and aft through the centre of the…
